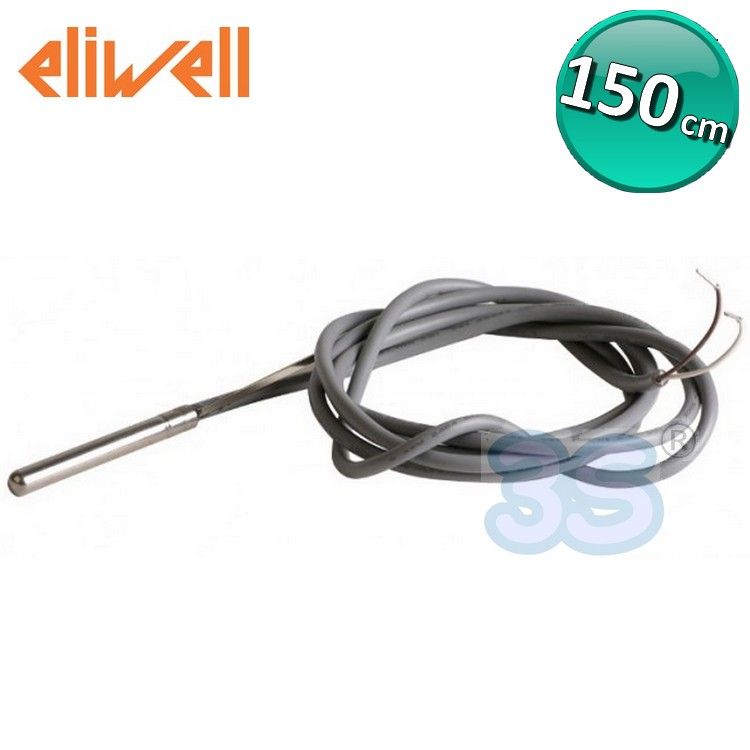

150 cm NTC probe with steel tube for Eliwell regulators

NTC PROBE - 150cm cable length for Eliwell temperature regulators

General probe data / Tolerance (mm):

• Code SN8P0A1500

• Description NTC with steel tube

• Element type NTC 10K ±1% BETA 3435

• 3 Sensor Model AISI 304 Capsule material AISI 304

• Capsule length 40mm +/- 0.2

• Capsule diameter 6mm +/- 0.1

• PVC cable type

• Gray color

• Diameter 2X0.25 Ø 4.6mm +/- 0.15

• Probe length (1) 1.5 m +/- 10.0

• Cable/pipe connection none

• Terminal Tips

• Polyurethane resin filler

Technical features

• Working range -30…+80°C

• Accuracy ±1%

• Degree of protection IP 67

• Response time K = 10” in liquid V = 2 m/s

Testing Tests

• 2Kg tensile test

• Insulation resistance 20Mohm @ 500 Vc

• Dielectric strength 2000V~

Product Code: SN8P0A1500
