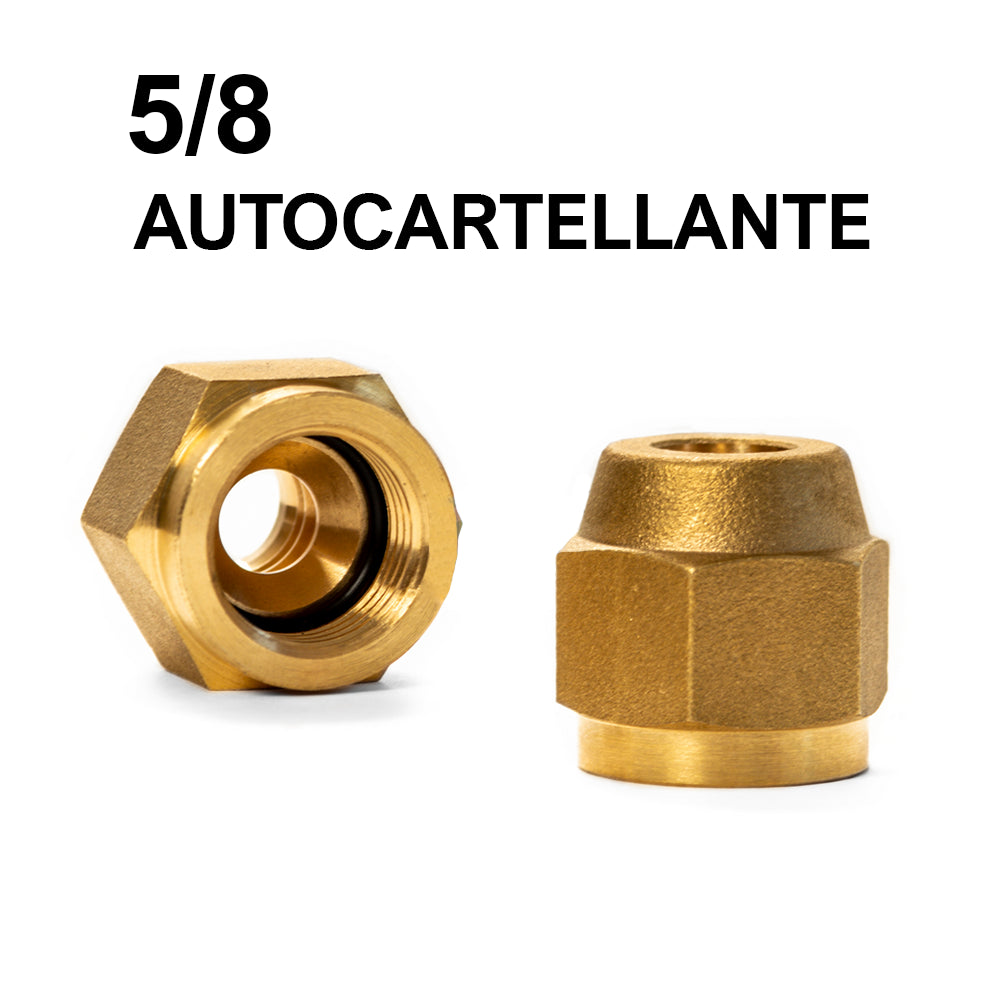

5/8'' self-flaring fitting for air conditioning copper pipe

5/8' SELF-FLAPPING CONNECTOR

Avoids filing and eliminates the risk of loss

Self-flaring fittings allow copper and aluminum pipes to be joined without a flare. They are compatible with traditional 45° flare fittings and work with pipes of any thickness. Tests conducted in accordance with the European Standard for Safety and the Environment EN 378 demonstrate that they can also be used as a reliable alternative to brazing, for example, for work in explosive environments.
The metal seal and operating pressure of up to 140 bar make this product particularly suitable for refrigeration and air conditioning systems operating with new low environmental impact refrigerants for connecting pipes, valves, tanks and line components in general.
The bite ring acts like a vice on the outer surface of the pipe to resist pressure and form an effective seal.

Characteristics:

• Fluid temperature: -40°C to +150°C
• Maximum working pressure: 140 bar
• Suitable for all HCFC, HFC, HC and R744 (CO2) refrigerants and oils
• Triple metal seal
• Compatible with traditional 45° flare fittings
• There is no need to calibrate or flare the end of the pipe, nor tighten with a torque wrench

Approvals:

• CE (PED, RoHS, REACH), EAC
• Performance exceeding DIN 8912 and SAE J513 requirements of traditional 45° flare fittings
• Patented system

Product Code: SFC-10
