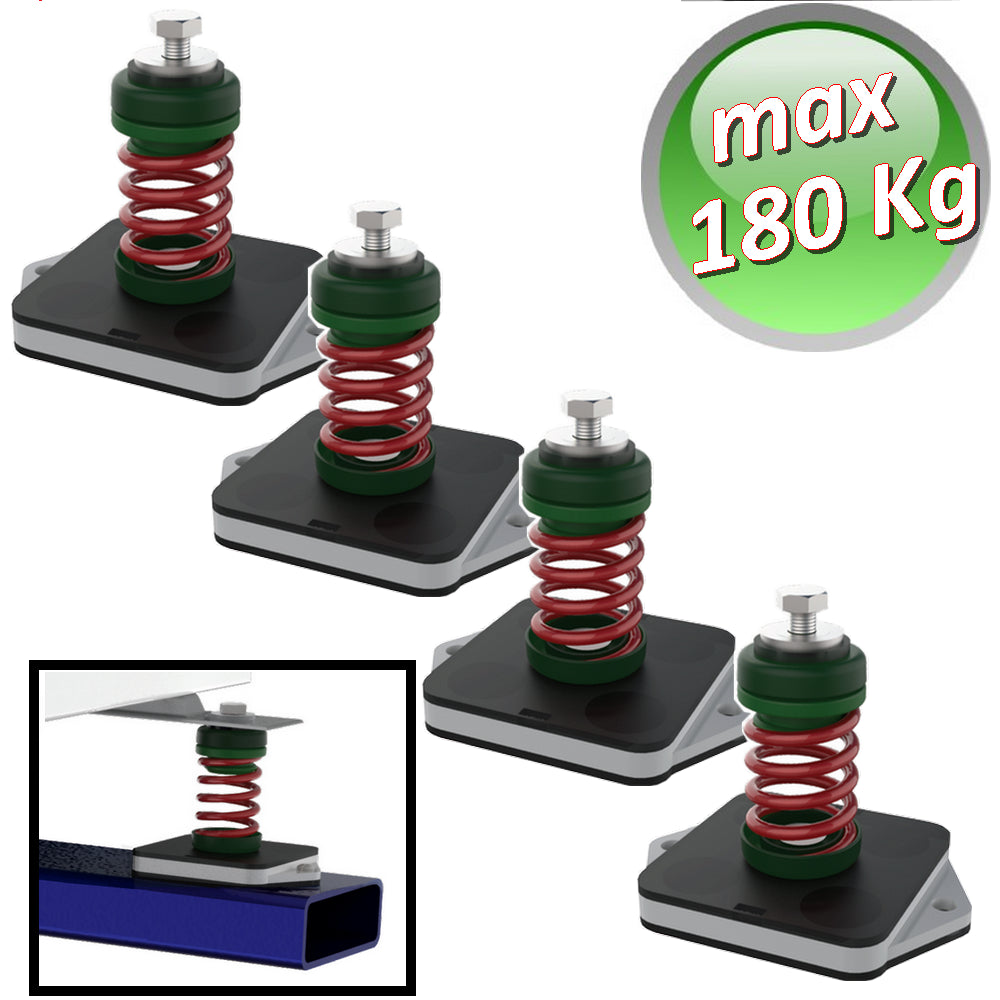

Megol anti-vibration spring with maximum load capacity 180 kg. Green colour - 4 pieces

MEGOL ANTI-VIBRATION MOUNT WITH SPRING

MAX LOAD CAPACITY 180 Kg. GREEN COLOR - 4 PIECES

CHARACTERISTICS:

Latest-generation hybrid shock absorber for supporting external units on bases or structures. The new spring+megol combination provides the necessary damping, thanks to the helical spring, even at low frequencies (from 3 to 15 Hz). It features an independent locking system and an 8 mm metric threaded outlet, making it easy to install regardless of position.

Its particular composition of megol + spring ensures extraordinary acoustic results in the field of vibrations and greater resistance to aging and breakages caused by micro cracks.

Coil springs perform excellently in the frequency range from 300 rpm to 2500 rpm. Furthermore, they do not cause undulating or jerky movements.

SCOPE OF APPLICATION:

Designed to support and eliminate noise and vibration pollution from the machine's self-supporting structure, ensuring performance and safety.

Designed for applications on large domestic, semi-industrial or industrial air conditioning machines, such as: refrigerators, fans, hoods, condensers, rooftops, uta, etc.

Resonant frequency of 3-15 Hz.

Available in 3 hardnesses according to performance, based on the load applied.

Anti-vibration height: 110 mm

COURSES:

• Green color: loads between 20-45 kg for each piece;
• Blue color. Loads between 45 - 75 kg for each piece;
• Red color: loads between 75-120 kg for each piece.

Product Code: SE-TBM/IX45V8.4
