7-zone radio-wired control module - control unit for ducted zone thermostats

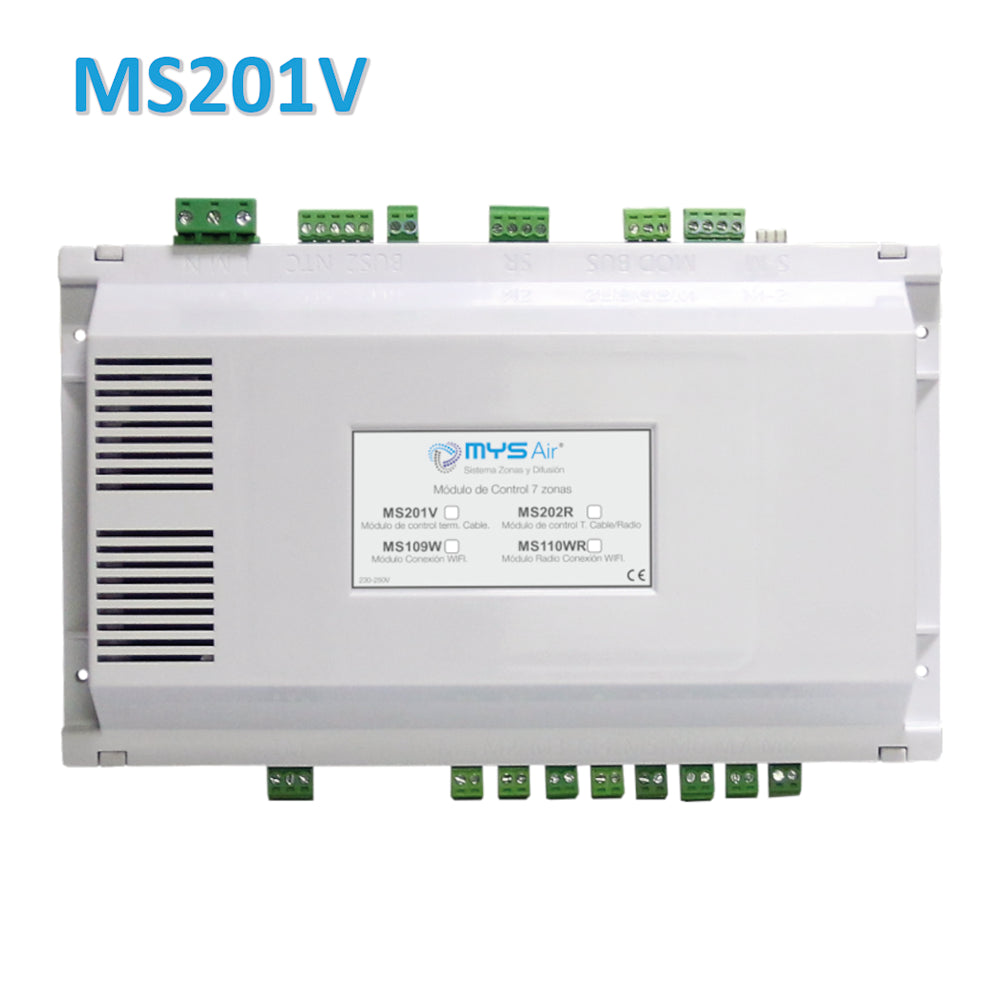

MS201V CONTROL MODULE UP TO 7 ZONES

RADIOWIRED FOR THERMOSTATS CHANNELLING ZONES

Canalizza.Zone by 3S®

DESCRIPTION:

• Control module with 7 radio frequency zones.
• Opening and closing order of motorized elements.
• Check the status of the thermostats of each zone.
• Integration with production equipment via the Total Control gateway module.
• Connection of up to 7 zones.

TECHNICAL FEATURES:

• 230/240V power supply with subsequent transformation to 12V.
• Data bus for integration with devices via the TOTAL CONTROL module.
• Electronic protection fuse.
• Two relay outputs
• Opening and closing command for motorized elements via two 0.75 mm wires to each zone. No special or shielded cables are required.
• Bus or star connection with thermostats with 0.25 mm 3-wire cable.
• Standardized plastic enclosure for DIN rail installation.
• Slotted support rail included.
• Dimensions 234*138*60 mm.

Product Code: MS201V
