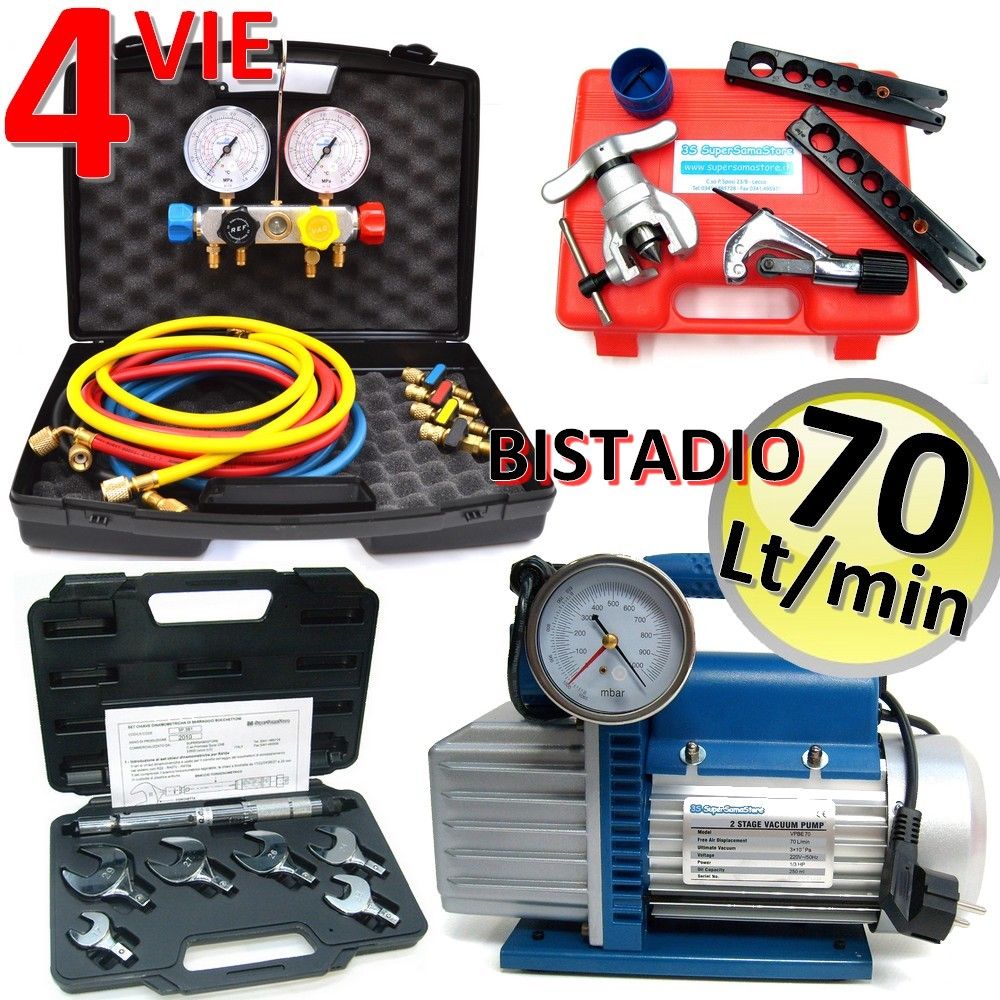

Professional air conditioning kit - 70 Lt pump, set of 4-way pressure gauges, flaring tool and torque wrench

70 LT TWO-STAGE VACUUM PUMP
+
4-WAY MANOMETER SET
with scales R410A - R32 - R407C - R134A

+

FRICTION FLAPS MACHINE

with deburrer and pipe cutter

+

TORQUE WRENCH

CHARACTERISTICS:

VACUUM PUMP:

• INSTRUCTIONS IN ITALIAN
• TWO-STAGE MODEL 70 LITERS PER MINUTE
• EQUIPPED WITH VACUUM GAUGE TO DISPLAY VACUUM OPERATION
• EQUIPPED WITH A SOLENOID VALVE TO PREVENT OIL RETURN IN THE EVENT OF AN ACCIDENTAL BLACKOUT.
• EQUIPPED WITH ON-OFF SWITCH
• OIL LEVEL INDICATOR
• 1 PACK OF OIL INCLUDED
• POWER CORD WITH SHUKO PLUG
• ERGONOMIC CARRYING HANDLE

TECHNICAL DATA:

• TWO-STAGE MODEL
• SUCTION CAPACITY IN LITERS PER MINUTE 70
• MOTOR POWER 1/3 HP
• POWER SUPPLY 220 V - 50Hz
• FINAL VACUUM 3x10-1 Pa - 0.003 mbar
• OIL IN THE PUMP 250 ML.
• DIMENSIONS 320X160X240 (mm)
• WEIGHT 9.30 KG
• 1/4' SAE CONNECTION
• CE CERTIFIED

MANOMETER SET:

• MANOMETER GROUP WITH 4 TAPS WITH BLUE-BLACK-YELLOW-RED CONTROL ON THE ALUMINUM BODY WHICH CONTROL THE 4 CONNECTION OUTPUTS.
• UNIVERSAL WITH SCALES GAS R410A / R32 / R407C / R134A
• MANOMETER HANGING HOOK
• FOUR 1500 mm LONG BLUE-BLACK-YELLOW-RED HOLES WITH 5/16 SAE CONNECTIONS ON BOTH ENDS, ONE OF WHICH IS EQUIPPED WITH VALVE PRESSURES.
• 2 TAPS - FITTINGS FOR R32 and R410A MALE 5/16 SAE WITH VALVE PRESSURE TO ATTACH TO THE FLOATING ENDS OF THE HOSES FOR INDEPENDENT CLOSURES.
• 2 TAPS - FITTINGS FOR R407C AND R134A MALE 5/16 SAE FEMALE 1/4 SAE CO VALVE PRESSURE TO ATTACH TO THE FLOATING ENDS OF THE HOSES FOR INDEPENDENT CLOSURES.
• 1 PLASTIC MANOMETER SET CASE.

FOLDERING MACHINE:

• Fully metal folder and jigs
• Inch jig for pipes with diameters of 5/16” - 1/4” - 3/8” - 1/2” - 5/8” - 3/4”
• Metric measurement template for pipes with diameters of 6 - 8 - 10 - 12 - 16 - 19 (mm)
• Equipped with a clutch system, automatic detachment of the flaring once the flare is completed
• Equipped with a special eccentric helical tip, for more precise countersinks
• Pipe cutter 4-28 mm - with retractable pipe deburrer
• Pipe flaring tools with steel blades - for internal and external flaring

TORQUE WRENCH:

• The wrench set is used for the correct tightening of the coupling nozzles in systems with R22 R410 R407 R134...
• The set includes the adjustable torque arm
• Tightening torque from 10 to 75 Nm
• Set consisting of 6 keys for diameters 17-22-24-26-27-29 - Supplied in a case

Product code: KT.PROF7016
