Eurotronic

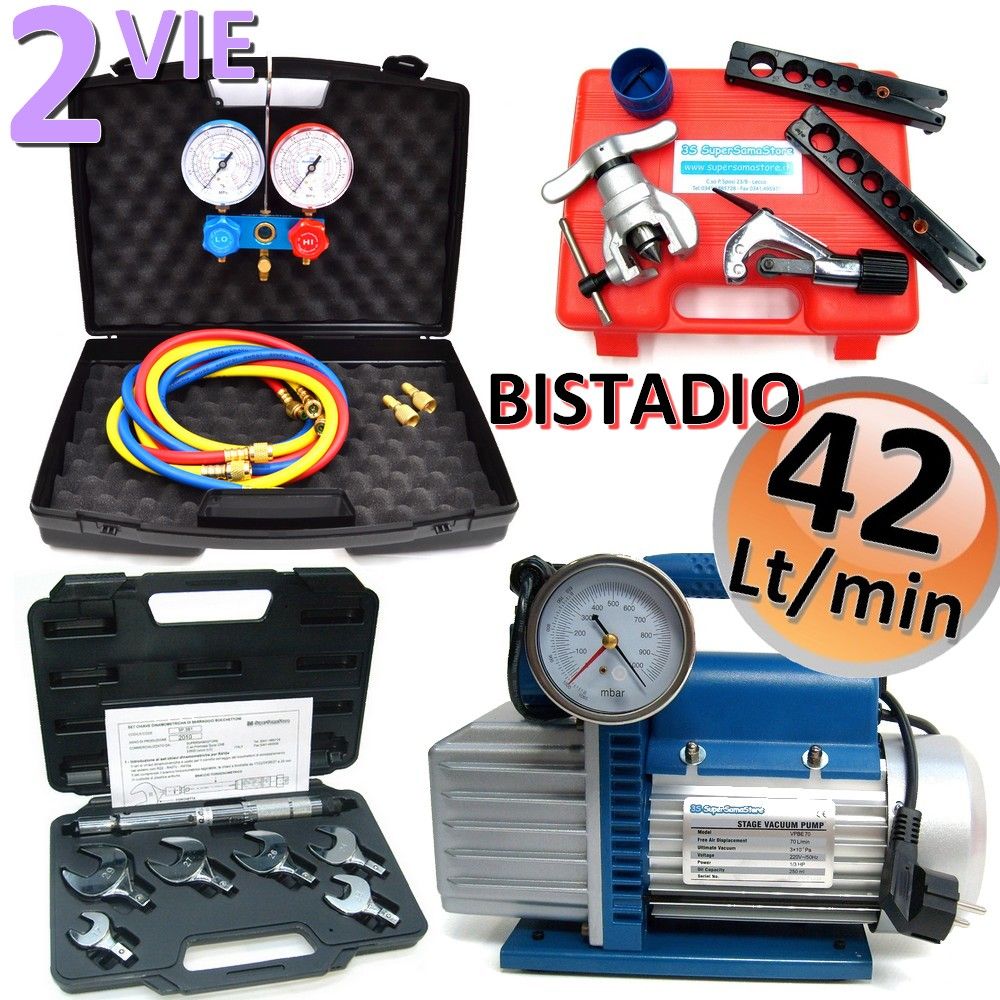

Professional air conditioning system kit - two-stage pump
Professional air conditioning system kit - two-stage pump
Couldn't load pickup availability
42 LT TWO-STAGE VACUUM PUMP
+
2-WAY MANOMETER SET
with scales R410A - R32 - R407C - R134A
+
FRICTION FLAPS MACHINE
+
TORQUE WRENCH
CHARACTERISTICS:
VACUUM PUMP:
INSTRUCTIONS IN ITALIAN
TWO-STAGE MODEL 42 LITERS PER MINUTE
EQUIPPED WITH VACUUM GAUGE TO DISPLAY VACUUM OPERATION
EQUIPPED WITH A SOLENOID VALVE TO PREVENT OIL RETURN IN THE EVENT OF AN ACCIDENTAL BLACKOUT.
-
EQUIPPED WITH ON-OFF SWITCH
OIL LEVEL INDICATOR
1 PACK OF OIL INCLUDED
POWER CORD WITH SHUKO PLUG
ERGONOMIC CARRYING HANDLE
TECHNICAL DATA:
TWO-STAGE MODEL
SUCTION CAPACITY IN LITERS PER MINUTE 42
MOTOR POWER 1/4 HP
POWER SUPPLY 220 V - 50Hz
FINAL VACUUM 3x10-1 Pa
OIL IN THE PUMP 200 ML.
DIMENSIONS 3100X160X240 (mm)
WEIGHT 7.50 KG
1/4' SAE CONNECTION
CE CERTIFIED
MANOMETER SET:
UNIVERSAL 2-WAY PRESSURE GAUGES, WITH GAS SCALES R410A - R32 - R407c - R134A
MANOMETER DIAMETER 80 mm
3 WHIPS 1/4 x 1/4 SAE - LENGTH 150 cm
2 REDUCED FITTINGS 1/4 SAE M x 5/16 F
AUTOMATIC FLAPPING MACHINE:
Fully metal folder and jig
- Inch jig for pipes with diameters of 5/16” - 1/4” - 3/8” - 1/2” - 5/8” - 3/4”
- Metric measurement template for pipes with diameters of 6 - 8 - 10 - 12 - 16 - 19 (mm)
Equipped with a clutch system, automatic detachment of the flaring once the flare is completed
- Equipped with a special eccentric helical tip, for more precise countersinks
- Pipe cutter 4-28 mm - with retractable pipe deburrer
- Pipe flaring tools with steel blades - for internal and external flaring
TORQUE WRENCH:
-
The wrench set is used for the correct tightening of the coupling nozzles in systems with R22 R410 R407 R134...
The set includes the adjustable torque arm
Tightening torque from 10 to 75 Nm
Set consisting of 6 keys for diameters of 17-22-24-26-27-29 - Supplied in a case
-
INSTRUCTIONS IN ITALIAN
Product code: KT.PROF42
