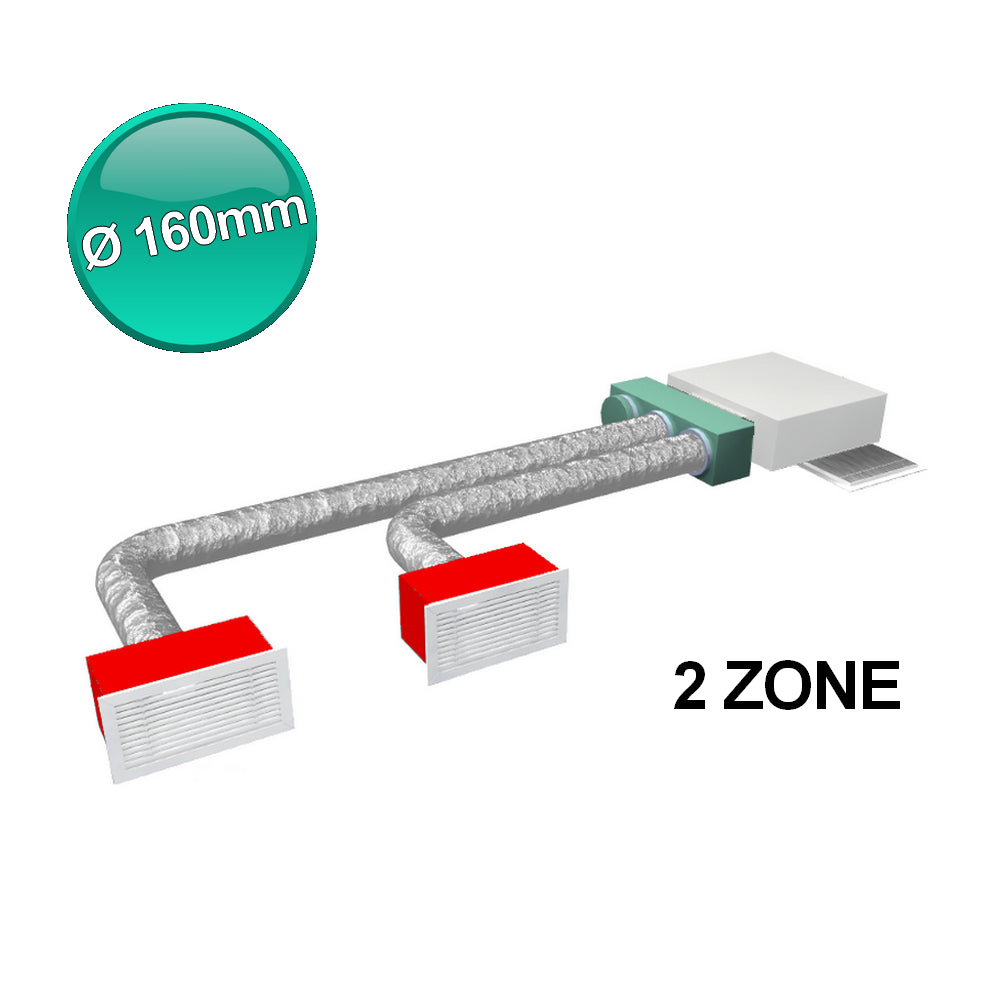

Complete accessory kit for 2-zone ducted system Ø 160 mm

COMPOSED OF:

• 1 PAL plenum with 2 outlets Ø 160 mm;
• 1 flexible aluminium and polyester duct with sound-absorbing insulation - Ø 160 mm - L = 10 m;
• 2 300x150 mm ABS calming boxes with adjustable gap from 160 to 200 mm and calibration damper;
• 2 white aluminium supply grilles 300x150 mm with double row of movable fins;
• 1 white aluminium filter holder intake grille 1000x400 mm - PUSH-PULL opening.

PLNM.2160:

Machine delivery plenum in PAL:

• anti-noise;
• anti-condensation;
• antibacterial.

Custom-made inlet for each ductable unit* with 2 Ø 160mm outlets.

Technical Features:

• density: 49 kg/m3;
• total thickness: 20 mm;
• coated on both sides with embossed aluminum;
• aluminum thickness: 80 microns;
• fire reaction class: B-53, do;
• temperature range: -30°C / +80°C.

CDTALLI.160:

• internal duct in micro-perforated aluminium/polyester with harmonic steel spiral;
• nylon vapor barrier;
• fiberglass insulation with a density of 18 kg/m3 and a thickness of 25 mm;
• external aluminum duct;
• fire reaction class 1 (DM 26/06/84 art. 8);
• certification number CSI 0081/16/RF;
• approval number PD2229C20D100013;
• diameter 160 mm;
• 10m long pack;
• operating temperature between -30 °C and +150 °C;
• maximum air speed 30 m/s;
• maximum operating pressure 2,000 Pa.

PLNMABS.300150:

The insulated plenum is a special patented plenum made of class V0 polycarbonate, with a quick-fit connection for flexible ducting and a calibration damper. It can accommodate any grille model in the clip-on version. Using these plenums therefore allows for maximum simplicity and speed of installation.

Technical features

• Clips for tool-free tube fastening;
• Guides suitable for housing functional clips for mounting on walls or ceilings;
• Calibration damper;
• Adjustable rear detachment to adapt to different diameters of flexible duct.

GRMNRAL.300150:

The vents are made with a double row of movable fins. Each individual row of fins can be positioned (horizontal or vertical) and oriented according to your project needs. They are made of anodized aluminum, a highly resistant material that maintains its appearance and color over time.

GRRP+FP.1000.400:

• filter grill with fixed aluminium fins;
• color RAL9010;
• galvanized sheet metal frame;
• Push-Pull closure;
• ease of assembly;
• fixing with invisible screws inside the frame;
• ease of filter replacement;
• flat framed filter included in the price.

Applications
Wall/ceiling mounted filter holder intake/transit grille.

Delivery times approximately 10/15 working days from order confirmation.

When ordering, please specify the model of the machine to which the Plenum will be combined, plus the number and diameter Ø of the outlets (for special cases).

Product Code: KT.CNZT2.160
