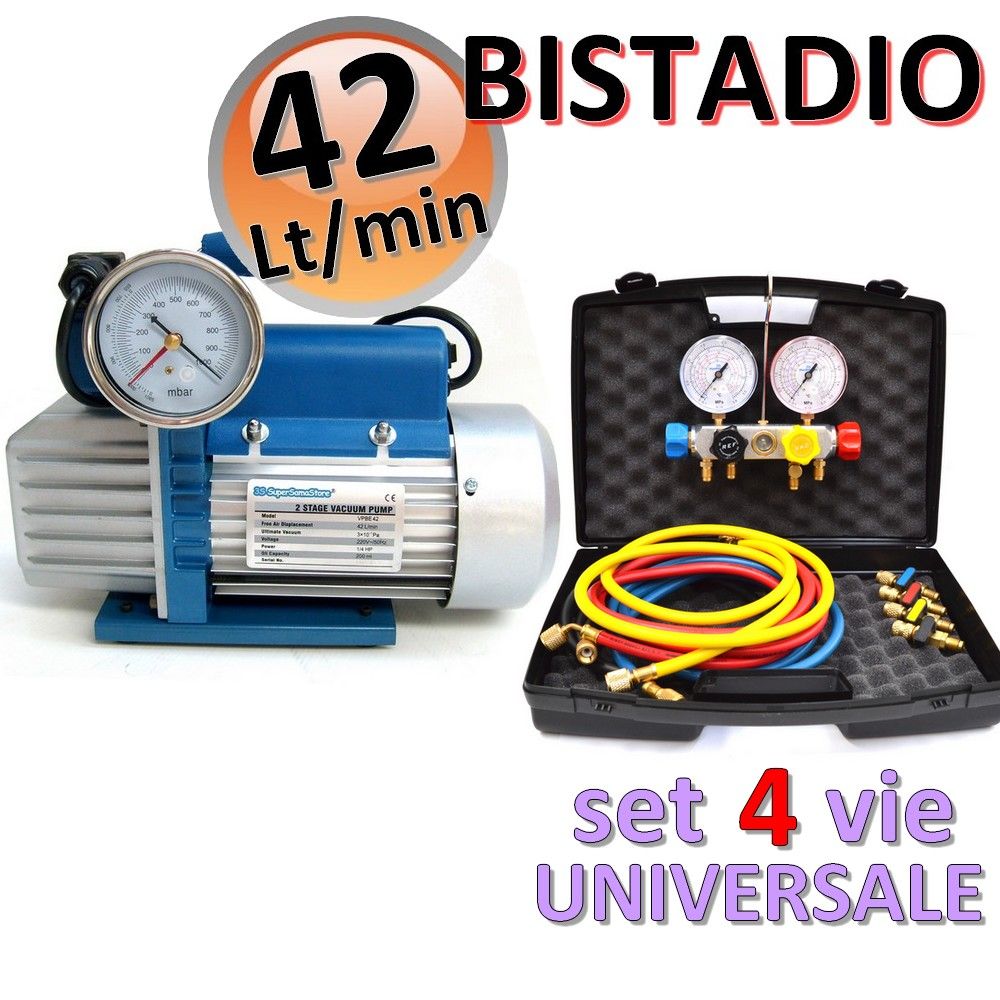

42 Lt two-stage vacuum pump + universal 4-way pressure gauge set

42 LT TWO-STAGE VACUUM PUMP
+
4-WAY MANOMETER SET
with scales R410A - R32 - R407C - R134A

CHARACTERISTICS:

VACUUM PUMP:

• INSTRUCTIONS IN ITALIAN

• TWO-STAGE MODEL 42 LITERS PER MINUTE

• EQUIPPED WITH VACUUM GAUGE TO DISPLAY VACUUM OPERATION

• EQUIPPED WITH A SOLENOID VALVE TO PREVENT OIL RETURN IN THE EVENT OF AN ACCIDENTAL BLACKOUT.

• EQUIPPED WITH ON-OFF SWITCH

• OIL LEVEL INDICATOR

• 1 PACK OF OIL INCLUDED

• POWER CORD WITH SHUKO PLUG

• ERGONOMIC CARRYING HANDLE

TECHNICAL DATA:

• TWO-STAGE MODEL

• SUCTION CAPACITY IN LITERS PER MINUTE 42

• MOTOR POWER 1/4 HP

• POWER SUPPLY 220 V - 50Hz

• FINAL VACUUM 3x10-1 Pa

• OIL IN THE PUMP 200 ML.

• DIMENSIONS 3100X160X240 (mm)

• WEIGHT 7.50 KG

• 1/4' SAE CONNECTION

• CE CERTIFIED

UNIVERSAL 4-WAY MANOMETER SET:

MANOMETER GROUP WITH 4 TAPS WITH BLUE-BLACK-YELLOW-RED CONTROL ON THE ALUMINUM BODY WHICH CONTROL THE 4 CONNECTION OUTPUTS.
UNIVERSAL WITH SCALES GAS R410A / R32 / R407C / R134A
MANOMETER HANGING HOOK
FOUR 1500 mm LONG BLUE-BLACK-YELLOW-RED HOLES WITH 5/16 SAE CONNECTIONS ON BOTH ENDS, ONE OF WHICH IS EQUIPPED WITH VALVE PRESSURES.
2 TAPS-FITTINGS FOR R32 and R410A MALE 5/16 SAE WITH VALVE PRESSURE TO ATTACH TO THE FLOATING ENDS OF THE HOSES FOR INDEPENDENT CLOSURES.
2 TAPS-FITTINGS FOR R407C AND R134A MALE 5/16 SAE FEMALE 1/4 SAE CO VALVE PRESSURE TO ATTACH TO THE FLOATING ENDS OF THE HOSES FOR INDEPENDENT CLOSURES.
1 PLASTIC MANOMETER SET CASE.

Product code: KT.42B4
