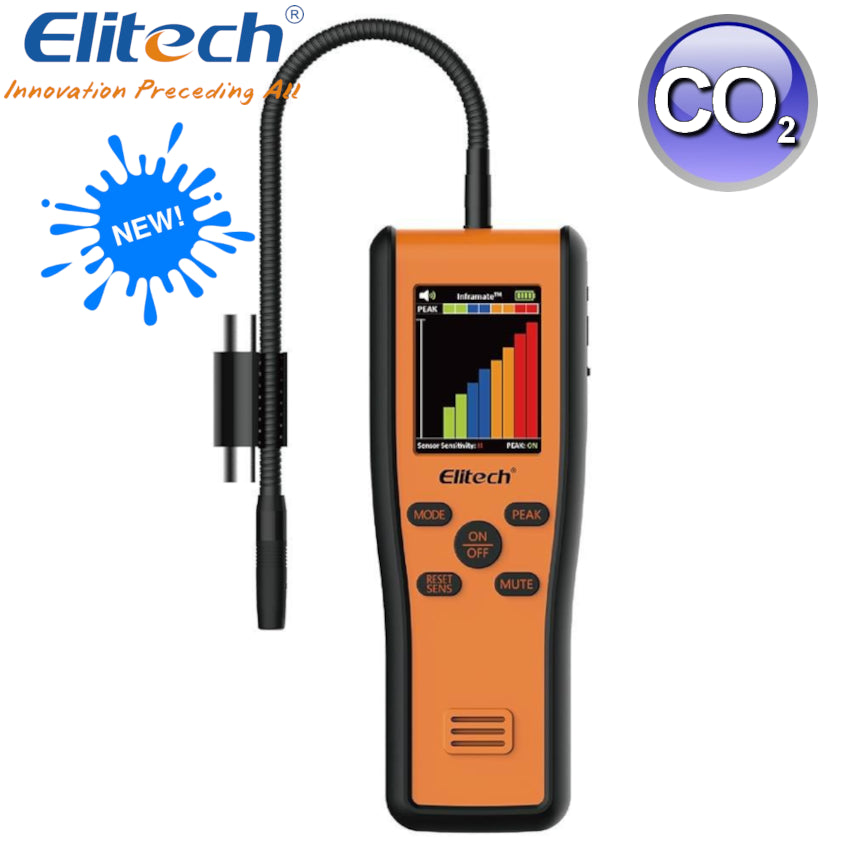

Elitech - CO2 Carbon Dioxide Detector Leak Detection
Elitech - CO2 Carbon Dioxide Detector Leak Detection
Couldn't load pickup availability
CO2 LEAK CATCHER
INFRARED SENSOR
DESCRIPTION:
• Carbon dioxide detection. The CO2-specific infrared sensor is specifically designed for the detection of R744 (CO2) refrigerant leaks.
• Long sensor life. An infrared sensor can operate for up to 40,000 hours and its sensitivity does not degrade over time.
• Large TFT LCD screen. Vividly displays leakage value, peak value, sensitivity level, and battery life for easy operation.
• Adjustable Sensitivity. With a maximum sensitivity of 6 g/year and easy adjustment to medium (14 g/year) and low (28 g/year) sensitivity levels, the detector can help you quickly locate leaks in a variety of challenging working conditions.
• Rechargeable lithium battery. Works up to 11 hours continuously on a full charge.
| Sensor type | Infrared |
| Sensor sensitivity | High: 6g/year; Medium: 14g/year; Low: 28g/year |
| Sensor lifespan | 40,000 hours |
| Detectable gases | R744 (CO2) |
| Automatic shutdown | After 10 minutes of inactivity |
| Power | Two 18650 lithium-ion batteries |
| Battery life | Up to 11 hours on a full charge |
| Charging time | Within 4 hours |
| Charging voltage | DC 5V, 1A |
| Storage temperature | -20°C~ 60°C (-4°F~ 140°F) |
| Operating environment | Temperature: -10°C~ 52°C (-4°F~ 140°F) Humidity: Max.90% RH (non-condensing) |
| Alarm mode | Acoustic and visual |
| Tool size | 201*72*35 mm (7.9*2.8*1.4 inches) |
| Tool weight | 450 g (15.9 oz) |
| Certification | CE, SAE_J1627 |
Product Code: INFRAMATE-C
