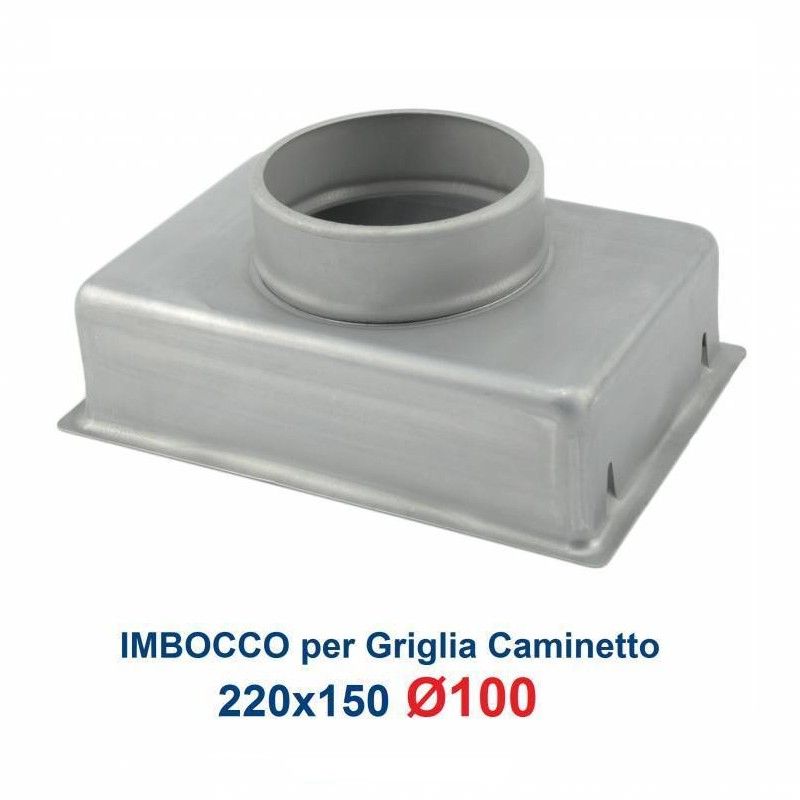

Inlet for 22x15 Grill, diameter 100mm, Adapter Connection for Fireplace Nozzle

Connection/Adapter Ø 100 mm

for 22x15 fireplace grates

CHARACTERISTICS:

Adapter inlet 22x15 rear diameter 100mm.
The inlet is used to install the 22x15 version FIREPLACE GRATE and then connect the 100 mm diameter air pipe.
Fitting made of 6/10 thick electro-galvanized steel

External dimensions: 193x130 mm
Internal dimensions: 190x125 mm
Depth: 55 mm (excluding pipe connection)
Diameter: 100 mm

Nb: The grill is not included in the listing.

We manufacture adapters with custom-made pipe connections (contact our Technical Office).

TECHNICAL DATA SHEET:

Product Code: IMB2215100
