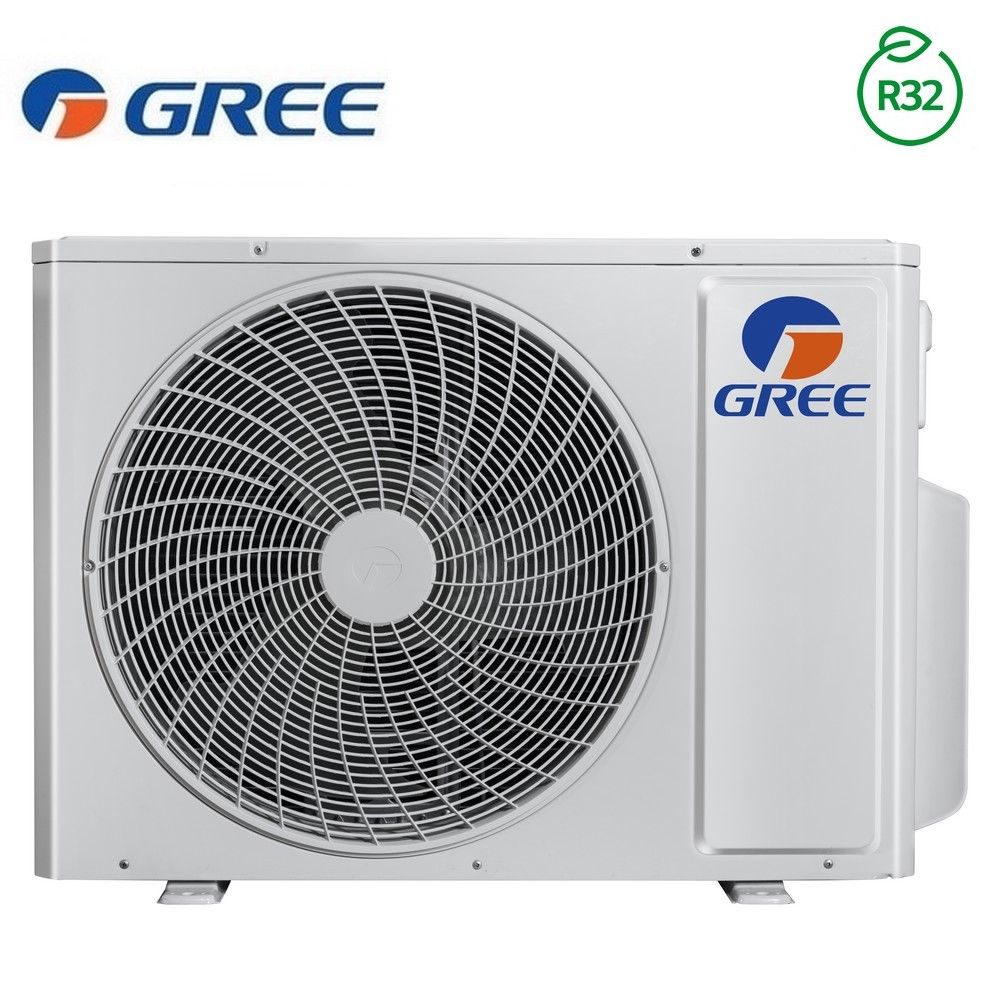

Gree 28 square R32 external unit for multi split (GREE10145)

Model:

• Series: GREE MULTI SPLIT FREE MATCH outdoor unit

• Refrigerant: R32

• Outdoor unit model: GWHD(28)NK6OO (GREE10145)

• Type: heat pump

• Power: 28000 BTU cold / 31730 BTU hot

Energy Efficiency:

• Seasonal efficiency:
  SEER: 6.1
  SCOP (average/warmest/colder climate): 4.0

• Energy Efficiency Class (Cooling): A++

• Energy Efficiency Class (Heating): A+

• Seasonal energy consumption (average/warmer/colder climate) kWh/year; 459 – 2520

Performance:

• Cooling Capacity (kW) : 8.0 (2.30 - 11.00)

• Heating Capacity (kW): 9.5 (3.65 - 10.25)

• Air flow m³/h: 3800

• Sound Pressure (dB(A) : 58

• Sound Power (dB(A) : 68

• Cooling power consumption kW: 2.12 (1.3-3.58)

• Heating power consumption Kw: 2.20 (1.0-2.87)

Electrical data:

• Power supply (V/Hz/?) : 230/50/1

Characteristics:

• Refrigerant gas: R32 - 1.80 Kg / 1.215 T.Co2 eq.

• Liquid / gas pipe diameter (inches): 1/4” (6.35mm) - 3/8” (9.52mm)

• Maximum length of pipes with standard load: 3-40 m

• Maximum length of pipes with added load: 70 m

• Maximum height difference (external unit above) 15 m

• Operating limits (outside temperature): cooling from -15°c to +43°c / heating from -15°c to +24°c

Dimensions and weight:

• External Unit HxWxD(mm): 654x889x340; 51 Kg without packaging

GREE by Argo

GREE-branded products are imported and guaranteed in Italy by ARGO, a historic Italian company that has been manufacturing and selling air conditioning products since 1929. GREE-branded air conditioners are designed for the consumer market and offer excellent value for money. Service is guaranteed nationwide by ARGO authorized service centers.
