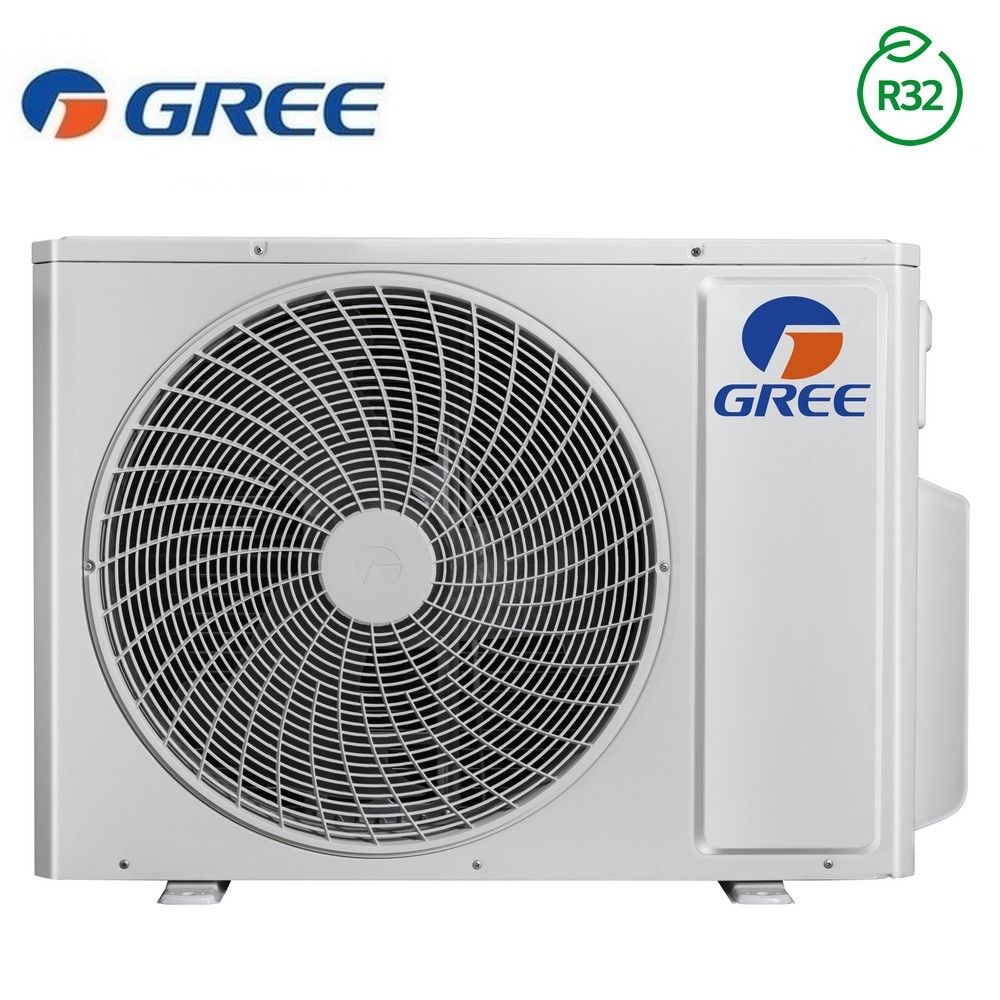

Gree 14 dual R32 outdoor unit for multi split (GREE10141)

Model:

• Series: GREE MULTI SPLIT FREE MATCH outdoor unit

• Refrigerant: R32

• Outdoor unit model: GWHD(14)NK6OO (GREE10141)

• Type: heat pump

• Power: 14000 BTU cold / 15000 BTU hot

Energy Efficiency:

• Seasonal efficiency:
  SEER: 6.5
  SCOP (average/warmest/colder climate): 4.0

• Energy Efficiency Class (Cooling): A++

• Energy Efficiency Class (Heating): A+

• Seasonal energy consumption (average/warmer/colder climate) kWh/year; 220 – 1330

Performance:

• Cooling Capacity (kW) : 4.1 (2.05-5.00)

• Heating Capacity (kW): 4.4 (2.49-5.40)

• Air flow m³/h: 2300

• Sound Pressure (dB(A) : 52

• Sound Power (dB(A) ): 65

• Cooling power consumption kW: 1.1 (0.55-1.40)

• Heating power consumption Kw: 0.97 (0.60-1.78)

Electrical data:

• Power supply (V/Hz/?) : 230/50/1

Characteristics:

• Refrigerant gas: R32 - 0.75 Kg / 0.506 T.Co2 eq.

• Liquid / gas pipe diameter (inches): 1/4” (6.35mm) - 3/8” (9.52mm)

• Maximum length of pipes with standard load: 3-10 m

• Maximum length of pipes with added load: 40 m

• Maximum height difference (external unit above) 15 m

• Operating limits (outside temperature): cooling from -15°c to +43°c / heating from -15°c to +24°c

Dimensions and weight:

• External Unit HxWxD(mm): 550x745x300; 30 Kg without packaging

GREE by Argo

GREE-branded products are imported and guaranteed in Italy by ARGO, a historic Italian company that has been manufacturing and selling air conditioning products since 1929. GREE-branded air conditioners are designed for the consumer market and offer excellent value for money. Service is guaranteed nationwide by ARGO authorized service centers.
