16x15cm BRONZE Vent Grill Diam.80mm with Chimney Adapter
16x15cm BRONZE Vent Grill Diam.80mm with Chimney Adapter
Couldn't load pickup availability
ADJUSTABLE AIR VENT GRILLE Ø 80 mm
16x15 cm Color BRONZE
CHARACTERISTICS:

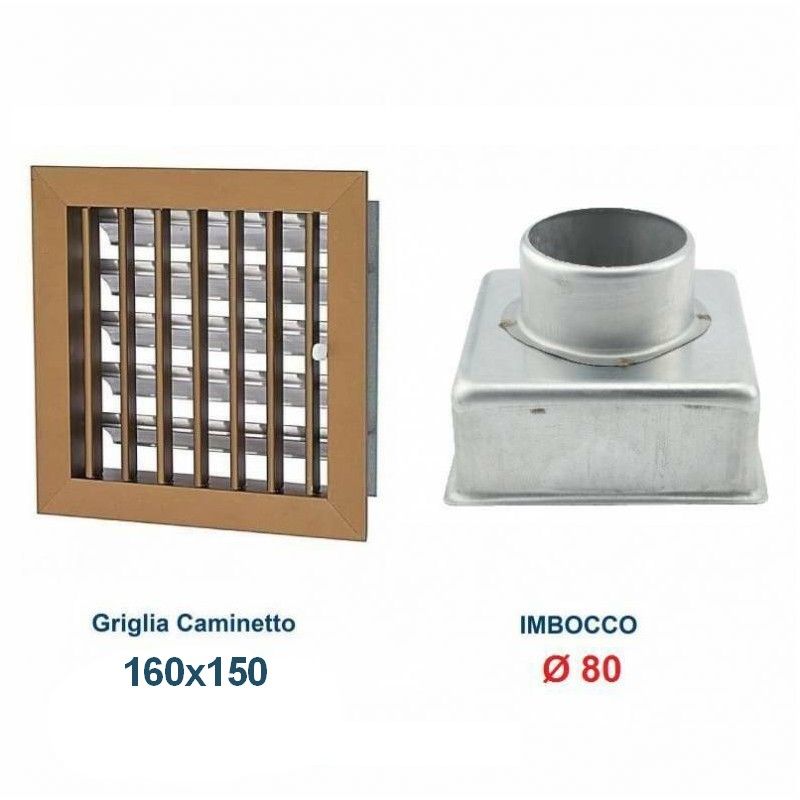

ADJUSTABLE GRID BRONZE color 160X150 mm WITH ADAPTER for 80mm diameter pipes.
Built-in air vent in BRONZE-coloured ALUMINIUM with adjustable fins.
Adapter for adjustable grills Ø 80.
Built-in delivery nozzle in BRONZE-coloured aluminium with adjustable fins via the damper controlled by the side lever.
Finishes: BRONZE (NATURAL ANODIZED ALUMINUM or WHITE color on request).
Grill
Material: ALUMINUM
Dimensions: 160x150 mm
Color: BRONZE
Inlet/Adapter
Material: electro-galvanized steel sp6/10
Dimensions: 130x130 mm
Pipe entry: mm Ø80
GCSIBR1615080 Adjustable fireplace grate Aluminium 160x160 mm + 80 mm diameter inlet
TECHNICAL DATA SHEET:
| Height | Grid: 15.3 cm Mouth: 13 cm |
| Length | Grid: 15.3 cm Mouth: 13 cm |
| Depth | 4.0 cm |
| Color | Bronze Grill |
| Material | Aluminum |
| Model | GCSIBR1615080 |
| Accessories supplied | Inlet 16x15 Ø80 mm |
| Compatibility | 16x15 entrances |
Product Code: GCSIBR1615080
