Eurotronic
22x15cm White Vent Grille Diam.100mm with Chimney Adapter
22x15cm White Vent Grille Diam.100mm with Chimney Adapter
Couldn't load pickup availability

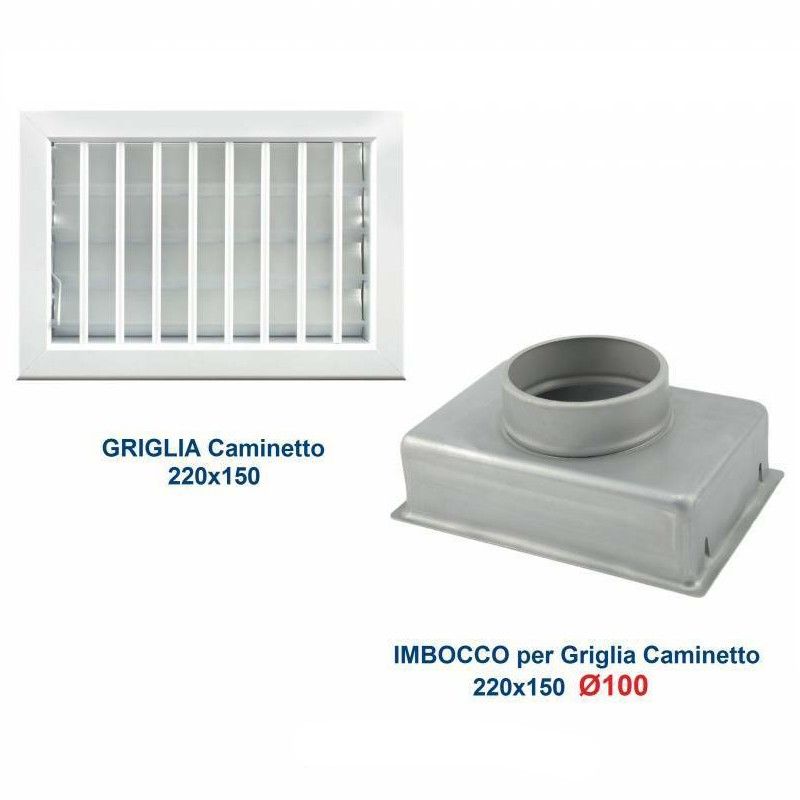

ADJUSTABLE AIR VENT GRILLE Ø 100 mm
22x15 cm White Color
CHARACTERISTICS:
ADJUSTABLE GRID WHITE color 220X150 mm WITH ADAPTER for 100mm diameter pipes.
Built-in air vent in WHITE aluminum with adjustable fins.
Adapter for adjustable grills Ø 100.
Built-in delivery nozzle in WHITE aluminium with adjustable flaps via the damper controlled by the side lever.
Finishes: WHITE (BRONZE or NATURAL ANODIZED ALUMINUM colour on request).
Grill
Material: ALUMINUM
Dimensions: 220x150 mm
Color: WHITE
Inlet/Adapter
Material: electro-galvanized steel sp6/10
Dimensions: 190x130 mm
Pipe Inlet: mm Ø100
GCSIB2215100 Adjustable fireplace grate WHITE 22x15 cm + 100 diameter inlet
TECHNICAL DATA SHEET:
| Height | Grill: 21.5 cm Entrance: 19 cm |
| Length | Grid: 15.2 cm Mouth: 13 cm |
| Depth | 4.0 cm |
| Color | White |
| Material | Aluminum |
| Model | GCSIB2215100 |
| Attack | Diameter 100mm |
| Accessories supplied | Inlet 22x15 Ø100 mm |
| Compatibility | 22x15 entrances |
Product code: GCSIB2215100
