Eurotronic
16x15cm ALUMINUM Vent Grill Diam.80mm with Chimney Adapter
16x15cm ALUMINUM Vent Grill Diam.80mm with Chimney Adapter
Couldn't load pickup availability

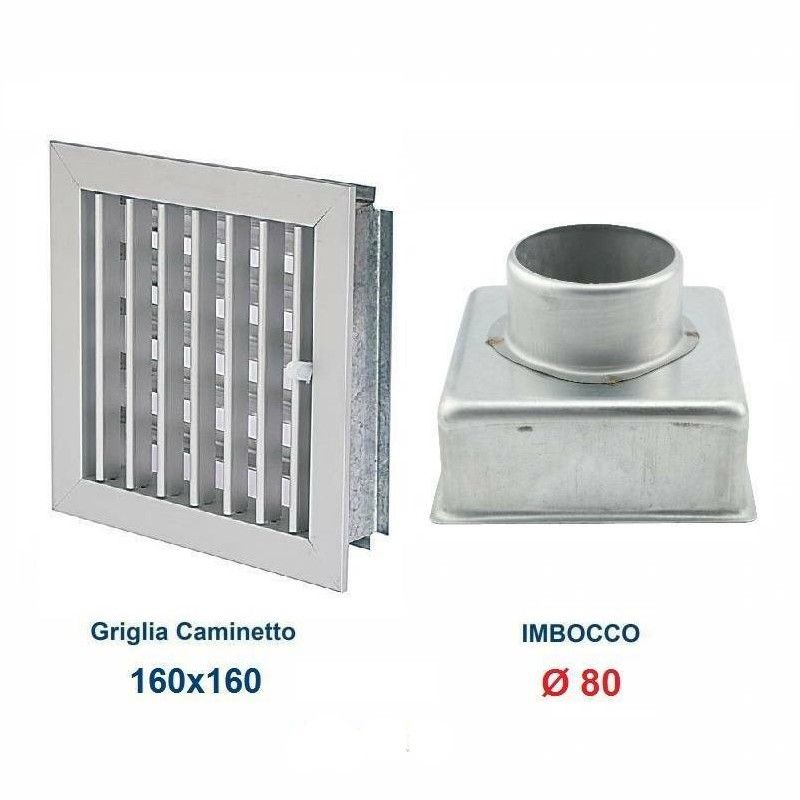

ADJUSTABLE AIR VENT GRILLE Ø 80 mm
16x15 cm Color ALUMINUM
CHARACTERISTICS:
ADJUSTABLE GRID ALUMINUM color 160X150 mm WITH ADAPTER for 80mm diameter pipes.
Built-in outlet nozzle in NATURAL ANODIZED ALUMINIUM color with adjustable fins.
Adapter for adjustable grills Ø 80.
Built-in delivery nozzle in ANODIZED ALUMINUM color with adjustable fins by means of the damper controlled by the side lever.
Finishes: NATURAL ANODIZED ALUMINUM (BRONZE or WHITE color on request).
Grill
Material: ALUMINUM
Dimensions: 160x150 mm
Color: ALUMINUM
Inlet/Adapter
Material: electro-galvanized steel sp6/10
Dimensions: 130x130 mm
Pipe entry: mm Ø80
GCSIAL1615080 Adjustable fireplace grate Aluminium 160x160 mm + 80 mm diameter inlet
TECHNICAL DATA SHEET:
| Height | Grid: 15.3 cm Mouth: 13 cm |
| Length | Grid: Cm Cm 15.8 Mouth: 13 cm |
| Depth | 4.0 cm |
| Color | Aluminum |
| Material | Aluminum |
| Model | GCSIAL1615080 |
| Accessories supplied | Inlet 16x15 Ø80 mm |
| Compatibility | 16x15 entrances |
Product code: GCSIAL1615080
