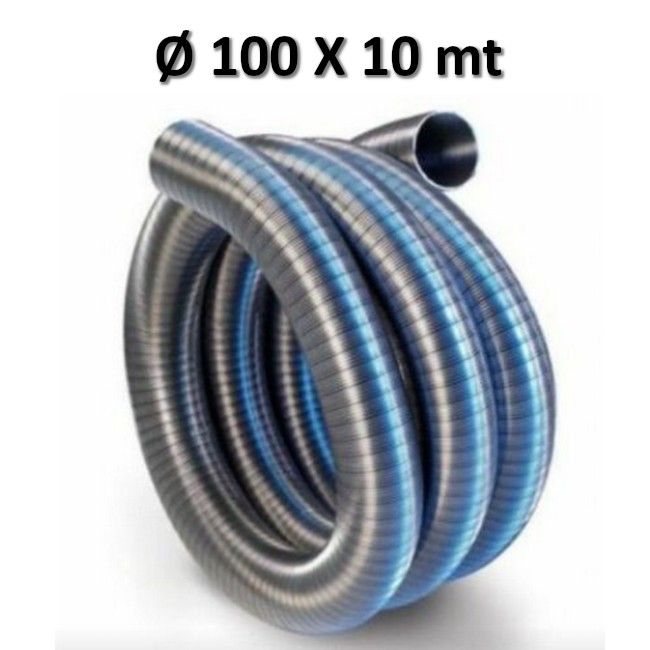

Flexible steel pipe Ø 100 mm length 10 m - smooth internal wall flue

FLEXIBLE STEEL PIPE FOR CHIMNEY

CHARACTERISTICS

Category: FLEXIBLE CHIMNEY

It is used as a flue for lining pre-existing flues (concrete, brick, etc.), not suitable if used as a smoke duct (horizontal).
Chimney element made of 0.11 mm thick 316 stainless steel. CE certified system in compliance with the EN1856-2:2009 standard, it withstands operating temperatures of up to 450° under negative pressure (n1) without a gasket, and 200° under positive pressure (p1) using a high-temperature sealant, which guarantees the joints are perfectly sealed against gases and condensation. It also complies with the UNI/TS 11278:2008 installation standard.
Designation with gasket: EN 1856-2 – T200 – P1 – W – V2 – L50040 - 0
Designation without gasket: EN 1856-2 – T600 – N1 – D– V2 – L50040 – G600

Product Code: FLEX.100AC
