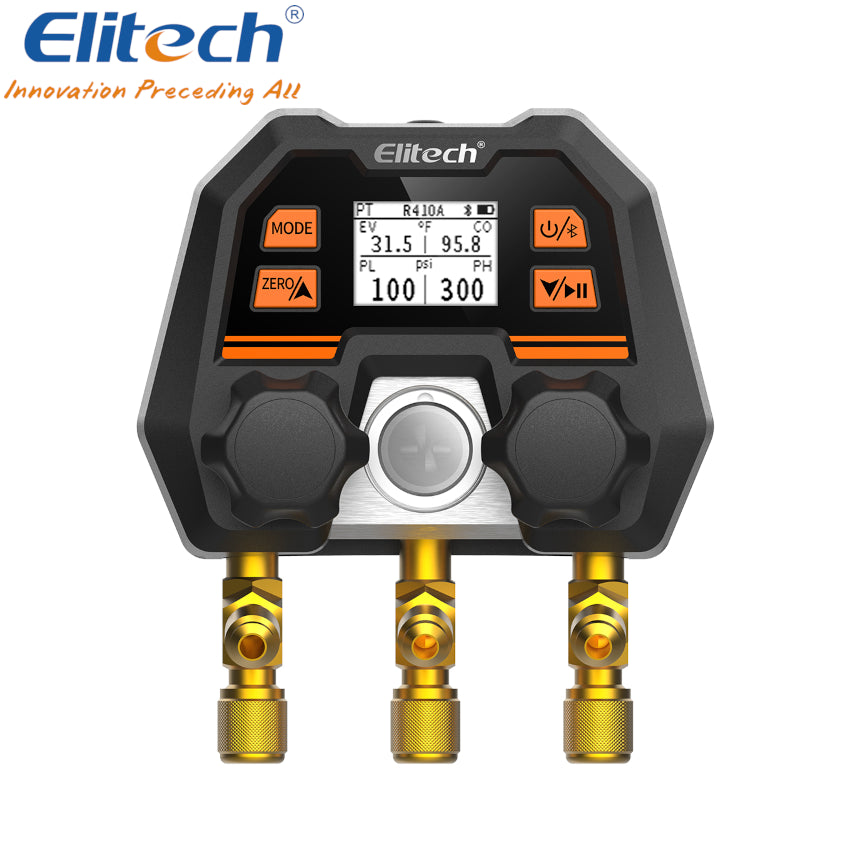

Elitech DMG-4B Digital Manifold Gauge App Control CA Controls
Elitech DMG-4B Digital Manifold Gauge App Control CA Controls
Couldn't load pickup availability
DIGITAL MANOMETER GROUP
APP CONTROL
DESCRIPTION:
The DMG-4B digital manifold for REFRIGERANT GAS combines temperature, pressure, constant pressure, vacuum and data logging modes in a single device.
Suitable for cooling system inspection and maintenance, allowing users to obtain more accurate information. Improves user work efficiency. It can be easily operated by adjusting the mode and valve on the unit. It also supports an app for viewing reports and analyzing data. Real-time updates for commonly used refrigerants. Remote firmware upgrades are available for convenient ongoing use.
• Supports 18 types of refrigerants
• Up to 140+ types of refrigerants can be updated.
• By connecting via an application it is possible to view the data in real time.
• Analyzes data intelligently, accurately and can even update firmware on the device remotely.
• More intuitive COG LCD display with more accurate digital sensor measurements
CHARACTERISTICS:
| Characteristic | Parameter |
| Pressure range | ±1% of full scale |
| Resolution | 1 psi |
| Unit | Pressure: psi, kPa, MPa, bar, inHg Temperature: °C,°F |
| Type of refrigerant | The device defaults to 18 types, which can be updated via the APP |
| Alternative refrigerants | Default device type: R11 R12 R13 R22 R290 R32 R134a R404A R410A R407C R408A R409A R458A R448A R449A R500 R502 R600 App Support Types: R11 R113 R114 R115 R116 R12 R123 R1233zd R1234yf R1234ze R124 R125 R13 R134a R14 R141b R142b R143a R152a R161 R170 R21 R218 R22 R227EA R23 R236EA R236fa R245fa R290 R32 R40 R401A R401B R401C R402A R402B R403A R403B R404A R405A R406A R407A R407B R407C R407D R407E R407F R408A R409A R409B R41 R410A R410B R411A R411B R412A R413A R414A R414B R415A R415B R416A R417A R417B R417C R419A R419B R420A R421A R421B R422A R422B R422C R422D R422E R423A R424A R425A R426A R427A R428A R429A R430A R431A R432A R433A R433B R433C R434A R435A R436A R436B R437A R438A R439A R440A R441A R442A R443A R444A R444B R445A R446A R447A R448A R449A R449B R450A R451A R451B R452A R452B R452C R453A R454A R454B R454C R455A R456A R457A R458A R50 R500 R502 R503 R504 R507A R508A R508B R509A R510A R512A R514A R600 R600a R601 R601a R717 R718 R720 R728 R732 R740 R744 Note: The actual supported refrigerant types are subject to the APP |
| Interface | 1/4SAE*3 |
| Power supply | 2 x 1.5V AAA batteries Battery life: 200 hours (display with backlight off) |
| Screen | Liquid crystal display |
| Product parameters | Dimensions: 110 x 75 x 135 mm Weight: about 700 g |
| Environmental requirements | Working temperature: 14~122?/-10~50? Storage temperature: -4~140?/-20~60? |
| Supported languages | English, Chinese |
Product Code: DMG-4B
