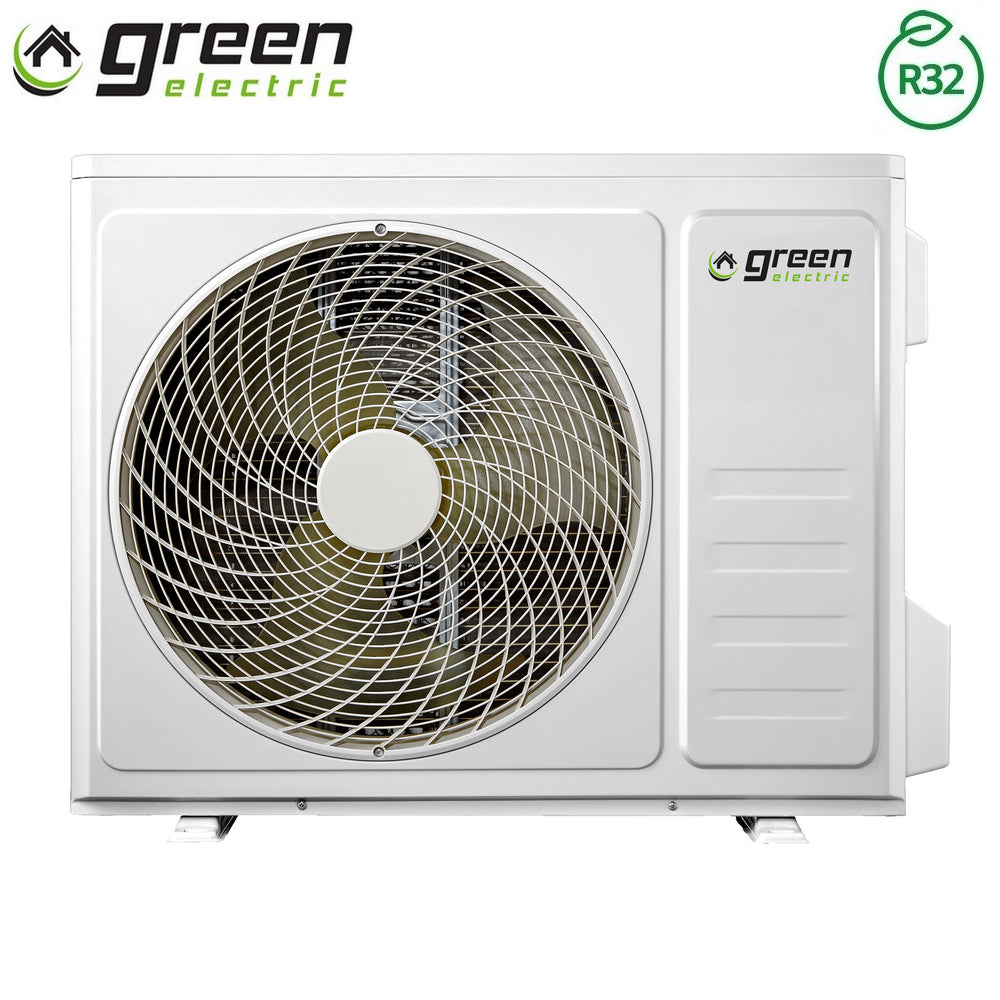

R32 dual Green Electric EVO 4.1 kW DC Inverter outdoor unit

Model:

• Series: GREEN Electric EVO

• Refrigerant: R32

• External unit model: D.GREVO.41D

• Type: heat pump

• Power: 14000 BTU cold / 14700 BTU hot

Energy Efficiency:

• Seasonal efficiency:
  SEER: 6.1
  SCOP (average/warmest/colder climate): 4.0

• Energy Efficiency Class (Cooling): A++

• Energy Efficiency Class (Heating): A+

• Seasonal energy consumption (average/warmer/colder climate) kWh/year; 235 – 1330

Performance:

• Cooling Capacity (kW) : 4.1 (1.20-4.85)

• Heating Capacity (kW): 4.31 (1.25-5.20)

• Air flow m³/h: 2300

• Sound Pressure (dB(A) : 55

• Sound Power (dB(A) ): 65

• Cooling power consumption kW: 1,246 (0,25-1,56)

• Heating power consumption Kw: 1.159 (0.23-1.56)

Electrical data:

• Power supply (V/Hz/?) : 230/50/1

Characteristics:

• Refrigerant gas: R32 - 1.10 Kg / 0.743 T.Co2 eq.

• Liquid / gas pipe diameter (inches): 1/4” (6.35mm) - 3/8” (9.52mm)

• Maximum length of pipes with standard load: 3-10 m

• Maximum length of pipes with added load: 20 m

• Maximum height difference (external unit above) 10 m

• Operating limits (outside temperature): cooling from -13°c to +53°c / heating from -13°c to +30°c

Dimensions and weight:

• External Unit HxWxD(mm): 605x835x360; 38 Kg without packaging
