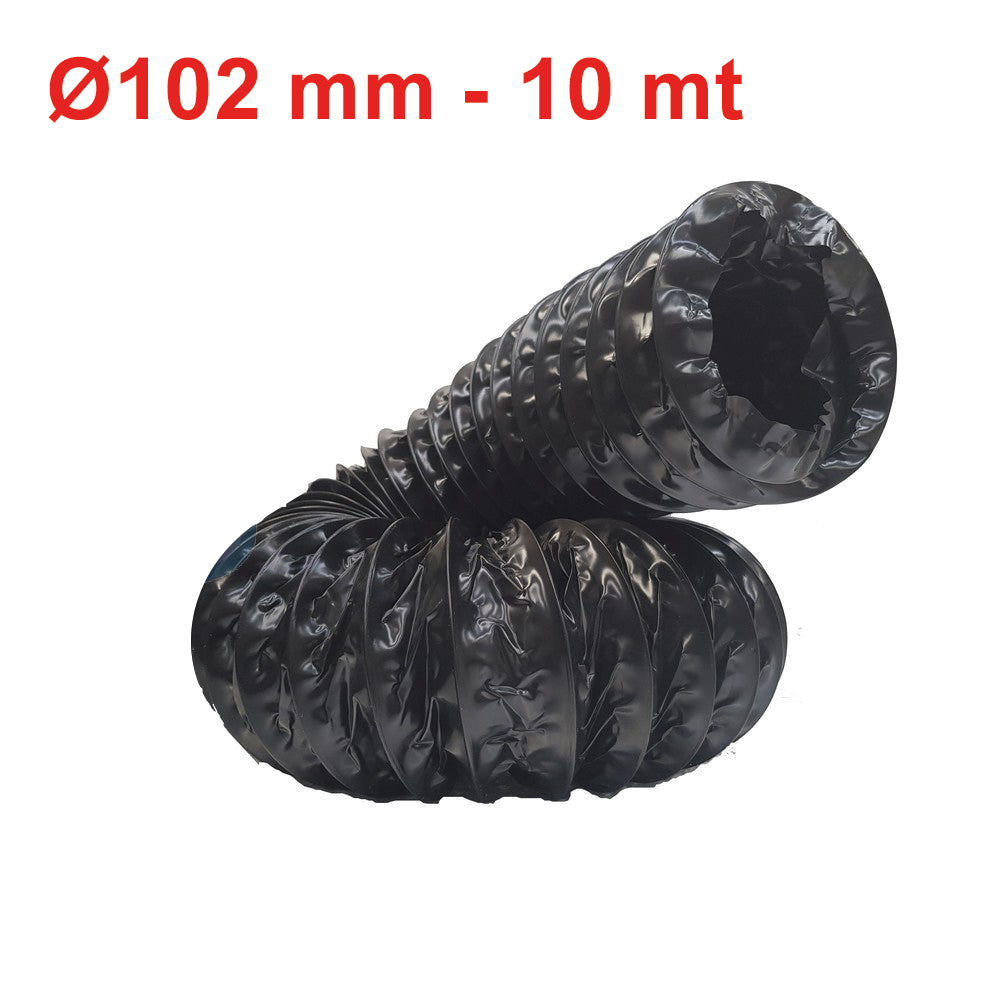

Tear-proof duct made of a harmonic steel spiral embedded in a layer of polyethylene - Ø 102 mm 10 m roll
Tear-proof duct made of a harmonic steel spiral embedded in a layer of polyethylene - Ø 102 mm 10 m roll
Couldn't load pickup availability
TEAR-PROOF DUCT MADE OF A STEEL SPIRAL
HARMONIC DROWNED IN A LAYER OF POLYETHYLENE
Ø 102 mm - 10 m roll
Characteristics:
Tear-proof duct made of a harmonic steel spiral embedded in a layer of polyethylene
Fire reaction class 1 (DM 26/06/84 art. 8)
Certification number CSI 0081/16/RF
Approval number PD2229C20D100013
Diameter 102 mm
Pack of 10m length
Operating temperature between -20 °C and +150 °C
-
Maximum air speed 30 m/s
Maximum operating pressure 2,000 Pa
F10
Flexible duct made with additive-containing polyolefin resin film and harmonic steel wire spiral.
CHARACTERISTICS
- COLOR : Black
- SIZES : from 10m standard
- PRODUCTION DIAMETERS : from 80 to 406mm
- OPACITY AND TOXICITY OF FUMES : Class F0 (NF F 16 – 101 – Tab. 4)
- TEMPERATURE OF USE : -20°C /+90°C (+110°C peaks)
- BENDING RADIUS : 0.6 x ø
- AIR SPEED : max 20m/sec
- PRESSURE : max 200mm approx
- REACTION TO FIRE:
CLASS IT : Class 1 (DM 26/06/84)
Homologation No.: RE1205C20D100005
CLASS FR : Class M1 (NF P 92-507:2004
CLASS EU : Class B-s1, d0 (EN 13501-1:2009)
GREEN BUILDING
It contributes to obtaining credits from the major international building sustainability rating systems:
- LEED : IP, EA, MR
- WELL : MATERIALS, COMMUNITY
- BREEAM : MAN, WST
CERTIFICATIONS
Reaction to fire, Non-toxicity of fumes.
APPLICATIONS
Air conditioning, mechanical ventilation. Connecting vents and diffusers.
Product Code: CDTPLT.102
