CANALIZZA.ZONE 2.0 WiFi - Motorized plenum for 4-zone air distribution Ø 160 mm - C-TOTAL excluded

ZONE DUCTING - 4 ZONES Ø 160 mm WIFI

MOTORIZED PLENUM FOR ZONE AIR DISTRIBUTION

Canalizza.Zone by 3S®

CHARACTERISTICS:

New system by 3S for targeted air distribution dedicated to Gree by Argo ducted air conditioning systems
(compatible with all major brands on request).

The Canalizza.Zone by 3S® motorized plenum can be configured with a minimum of 2 connections and a maximum of 7 (from 2 to 7 separately controllable zones) for rigid or flexible pipes Ø 160 mm.

The motorized dampers - controlled by wireless touchscreen room thermostats - installed directly on the plenum allow for targeted cooling/heating of only the 'inhabited' areas between various rooms, avoiding unnecessary energy waste.

An optimal solution for shops, offices, and residential properties, it significantly reduces system management costs and the size of the machinery required.

The touchscreen room thermostats are available in white and in the brand new Wi-Fi version (remote control of the entire system via an app on a smartphone or tablet). *On request.

The advantage of a system that can be managed zone by zone like the classic multi-split, with the elegance and refinement of the ducted system.

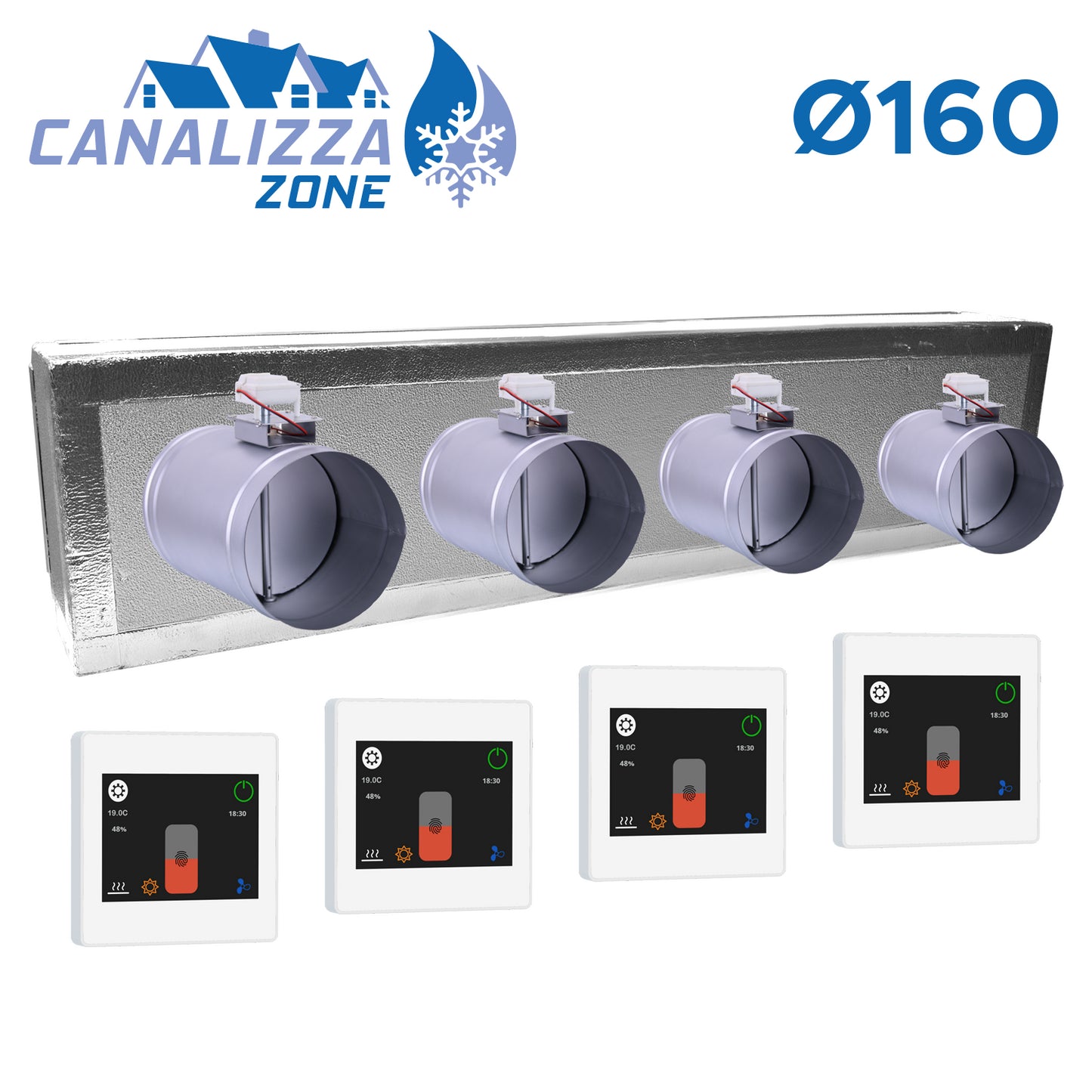

COMPOSED OF:

• 1 customizable blind box plenum

• 4 motorized dinghies with a diameter of Ø 160 mm

• 4 white Touchscreen Thermostats

• 1 Control module from 2 to 7 zones

• 1 Control module dedicated to the machine

Delivery times approximately 10/15 working days from order confirmation

Product code: CZ4Z.160.ARTE.W
