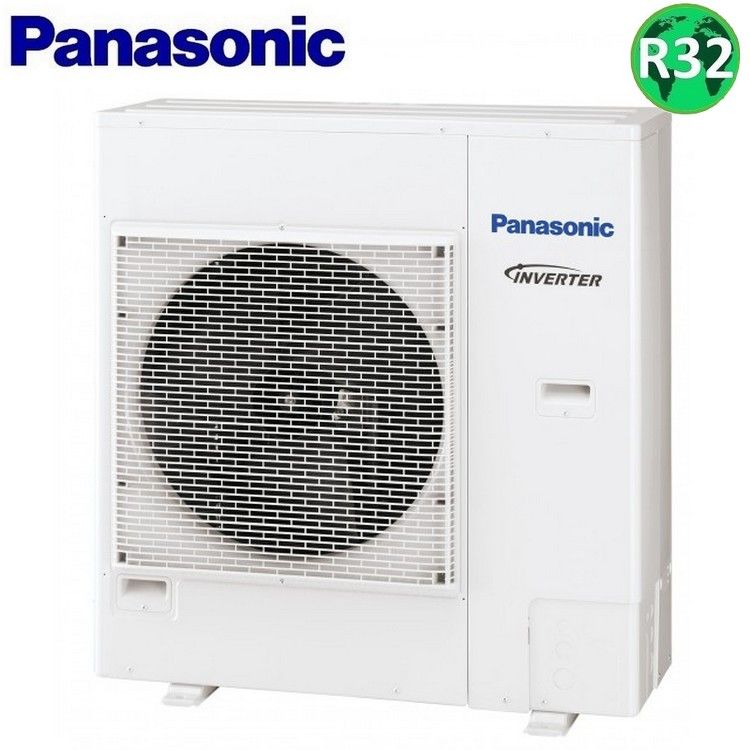

ETHEREA penta 4.5 / 18.3 Kw outdoor unit for multi R32 systems - PANASONIC CU-5Z90TBE

Panasonic CU-5Z90TBE - MULTI SPLIT OUTDOOR UNIT

for penta - can be combined with 5 indoor units - R32 A+++/A++

Model:

Free Multi Z system external unit

Outdoor unit model: CU-5Z90TBE

Energy Efficiency:

Seasonal efficiency:
SEER: 8.50
SCOP (average/warmest/colder climate): 4.68

Energy Efficiency Class (Cooling): A+++

Energy Efficiency Class (Heating): A++

Seasonal energy consumption (average/warmer/colder climate) kWh/year; 1100 – 2543

Performance:

Cooling Capacity (kW) : 9.0 (2.90 - 11.50)

Heating Capacity (kW): 10.40 (3.40 - 14.50)

Connectable up to 5 internal units with maximum power 18.30 kW

The unit must operate with a minimum of 2 indoor units connected

Sound Pressure (dB(A) ): 53/54

Cooling power consumption kW: 2.20 (0.55 – 3.86)

Heating power consumption kW : 2.15 (0.53 – 4.24)

Electrical data:

Power supply (V/Hz/?) : 230/50/1

Characteristics:

Refrigerant gas: R32 - 2.72 Kg / 1.836 T.Co2 eq.

Liquid / gas pipe diameter (inches): 1/4” (6.35mm) - 3/8” (9.52mm)

Maximum length of pipes with standard load: 3-45 m

Maximum length of pipes with added load: 80 m

Maximum height difference (external unit above) 15 m

Operating limits (outside temperature): cooling from -10 ° c to + 46 °c / heating from -15°c to +24°c

Dimensions and weight:

External Unit HxWxD(mm): 999 x940 x340 ; 81 Kg without packaging

Product Code: CU-5Z90TBE
