ETHEREA external unit quadri 4.5 / 14.7 Kw for multi R32 systems - PANASONIC CU-4Z80TBE

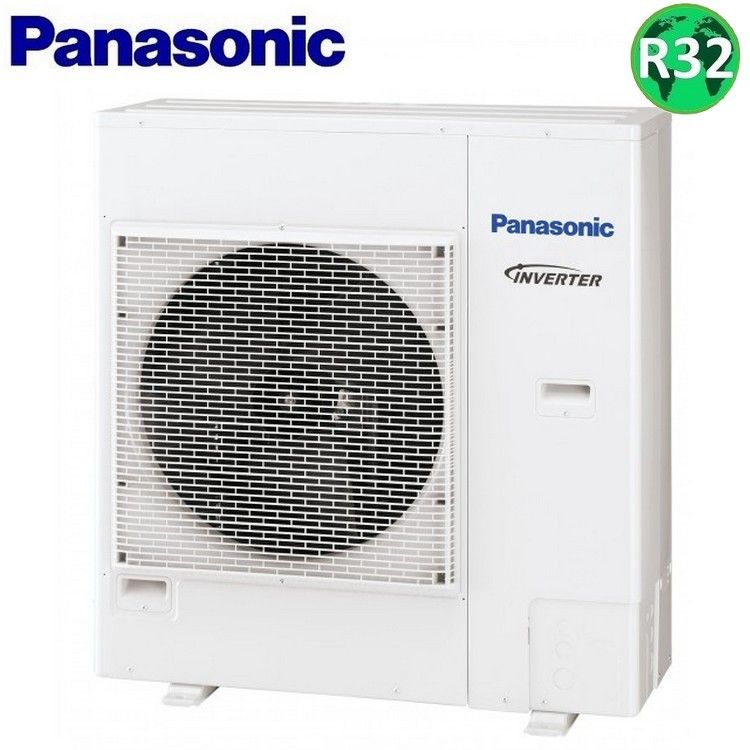

Panasonic CU-4Z80TBE - MULTI SPLIT OUTDOOR UNIT

for paintings - can be combined with 4 internal units - R32 A++/A++

Model:

Free Multi Z system external unit

Outdoor unit model: CU-4Z80TBE

Energy Efficiency:

Seasonal efficiency:
SEER: 7.90
SCOP (average/warmer/colder climate): 4.7 0

Energy Efficiency Class (Cooling): A++

Energy Efficiency Class (Heating): A++

Seasonal energy consumption (average/warmer/colder climate) kWh/year; 990 – 2026

Performance:

Cooling Capacity (kW) : 8.0 (3.0 - 9.2)

Heating Capacity (kW): 9.4 (4.2 - 10.6)

Connectable up to 4 internal units with maximum power 14.70 kW

The unit must operate with a minimum of 2 indoor units connected

Sound Pressure (dB(A) ): 51/52

Cooling power consumption kW: 1.98 (0.53 – 2.87)

Heating power consumption kW : 2.03 (0.70 – 3.06)

Electrical data:

Power supply (V/Hz/?) : 230/50/1

Characteristics:

Refrigerant gas: R32 - 2.72 Kg / 1.836 T.Co2 eq.

Liquid / gas pipe diameter (inches): 1/4” (6.35mm) - 3/8” (9.52mm)

Maximum length of pipes with standard load: 3-45 m

Maximum length of pipes with added load: 70 m

Maximum height difference (external unit above) 15 m

Operating limits (outside temperature): cooling from -10 ° c to + 46 °c / heating from -15°c to +24°c

Dimensions and weight:

External Unit HxWxD(mm): 999 x940 x340 ; 80 Kg without packaging

Product Code: CU-4Z80TBE
