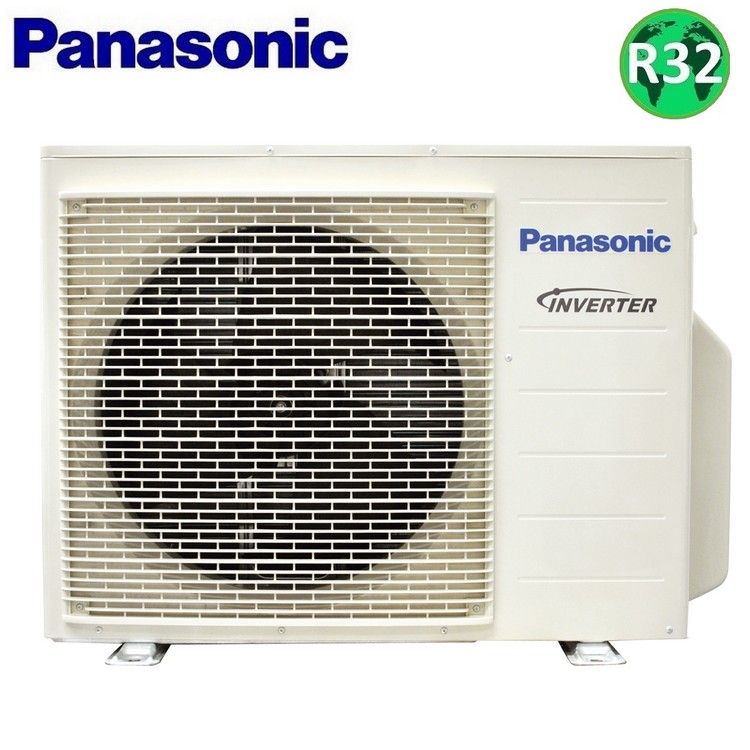

ETHEREA trial outdoor unit 4.5 / 11.2 Kw for multi R32 systems - PANASONIC CU-3Z68TBE

Panasonic CU-3Z68TBE - MULTI SPLIT OUTDOOR UNIT

for trial - can be combined with 3 indoor units - R32 A++/A+

Model:

Free Multi Z system external unit

Outdoor unit model: CU-3Z68TBE

Energy Efficiency:

Seasonal efficiency:
SEER: 8.00
SCOP (average/warmest/colder climate): 4.2 0

Energy Efficiency Class (Cooling): A++

Energy Efficiency Class (Heating): A+

Seasonal energy consumption (average/warmer/colder climate) kWh/year; 298 – 1733

Performance:

Cooling Capacity (kW) : 6.8 (1.9 - 8.0)

Heating Capacity (kW): 8.5 (3.3 - 10.4)

Connectable up to 3 internal units with maximum power 11.20 kW

The unit must operate with a minimum of 2 indoor units connected

Sound Pressure (dB(A) : 51/52

Cooling power consumption kW: 1.86 (0.27 – 2.37)

Heating power consumption kW : 2.15 (0.62 – 2.86)

Electrical data:

Power supply (V/Hz/?) : 230/50/1

Characteristics:

Refrigerant gas: R32 - 2.10 Kg / 1.418 T.Co2 eq.

Liquid / gas pipe diameter (inches): 1/4” (6.35mm) - 3/8” (9.52mm)

Maximum length of pipes with standard load: 3-30 m

Maximum length of pipes with added load: m60

Maximum height difference (external unit above) 15 m

Operating limits (outside temperature): cooling from -10 ° c to + 46 °c / heating from -15°c to +24°c

Dimensions and weight:

External Unit HxWxD(mm): 795 x875 x320 ; 71 Kg without packaging

Product Code: CU-3Z68TBE
