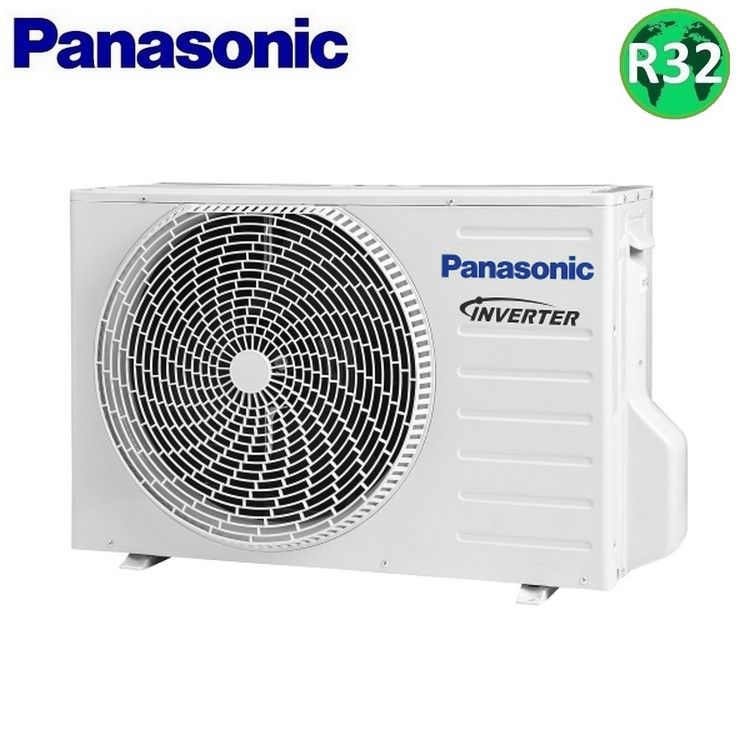

ETHEREA dual 3.2 / 6.0 Kw external unit for multi R32 systems - PANASONIC CU-2Z41TBE

Panasonic CU-2Z41TBE - MULTI SPLIT OUTDOOR UNIT

for dual - can be combined with 2 indoor units - R32 A+++/A++

Model:

Free Multi Z system external unit

Outdoor unit model: CU-2Z41TBE

Energy Efficiency:

Seasonal efficiency:
SEER: 8.50
SCOP (average/warmer/colder climate): 4, 6 0

Energy Efficiency Class (Cooling): A+++

Energy Efficiency Class (Heating): A++

Seasonal energy consumption (average/warmer/colder climate) kWh/year; 169 – 1075

Performance:

Cooling Capacity (kW) : 4.1 (1.5 - 5.2)

Heating Capacity (kW) : 4.6 (1.1 - 7.0)

Connectable to 2 internal units with maximum power 6.0 kW

The unit must operate with a minimum of 2 indoor units connected

Sound Pressure (dB(A) : 48/50

Cooling power consumption kW: 0.90 (0.25 – 1.37)

Heating power consumption kW : 0.96 (0.21 – 1.79)

Electrical data:

Power supply (V/Hz/?) : 230/50/1

Characteristics:

Refrigerant gas: R32 - 1.12 Kg / 0.756 T.Co2 eq.

Liquid / gas pipe diameter (inches): 1/4” (6.35mm) - 3/8” (9.52mm)

Maximum length of pipes with standard load: 3-20 m

Maximum length of pipes with added load: 30 m

Maximum height difference (external unit above) 10 m

Operating limits (outside temperature): cooling from -10 ° c to + 46 °c / heating from -15°c to +24°c

Dimensions and weight:

External Unit HxWxD(mm): 619 x8 24 x 299 ; 39 Kg without packaging

Product Code: CU-2Z41TBE
