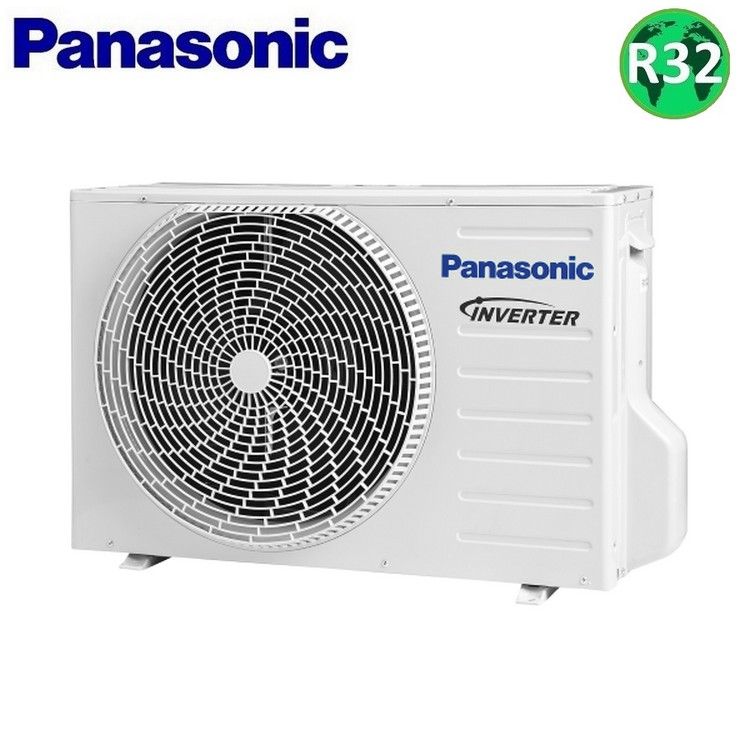

PANASONIC CU-2Z35TBE - MULTI SPLIT OUTDOOR UNIT
for dual - can be combined with 2 internal units
new R32 refrigerant gas with very high efficiency class A+++/A++
Model:
Free Multi Z system external unit
Outdoor unit model: CU-2Z35TBE
Energy Efficiency:
Seasonal efficiency:
SEER: 8.50
SCOP (average/warmer/colder climate): 4, 6 0
Energy Efficiency Class (Cooling): A+++
Energy Efficiency Class (Heating): A++
Seasonal energy consumption (average/warmer/colder climate) kWh/year; 144 – 974
Performance:
Cooling Capacity (kW) : 3.5 (1.5 - 4.5)
Heating Capacity (kW): 4.2 (1.1 - 5.6)
Connectable to 2 internal units with maximum power 6.0 kW
The unit must operate with a minimum of 2 indoor units connected
Sound Pressure (dB(A) : 48/50
Cooling power consumption kW: 0.72 (0.25 – 1.10)
Heating power consumption kW : 0.86 (0.21 – 1.34)
Electrical data:
Power supply (V/Hz/?) : 230/50/1
Characteristics:
Refrigerant gas: R32 - 1.12 Kg / 0.756 T.Co2 eq.
Liquid / gas pipe diameter (inches): 1/4” (6.35mm) - 3/8” (9.52mm)
Maximum length of pipes with standard load: 3-20 m
Maximum length of pipes with added load: 30 m
Maximum height difference (external unit above) 10 m
Operating limits (outside temperature): cooling from -10 ° c to + 46 °c / heating from -15°c to +24°c
Dimensions and weight:
External Unit HxWxD(mm): 619 x8 24 x 299 ; 39 Kg without packaging
Product Code: CU-2Z35TBE
Starting July 25, 2019, pursuant to Decree 146/2018, companies selling fluorinated gases and non-hermetically sealed equipment containing them must electronically report sales information to the Chamber of Commerce. The decree aims to track sales of these gases with a view to reducing emissions.
Presidential Decree 146/2018 requires that, during the sales phase, the buyer declare whether he is purchasing as a certified installer, distributor/wholesaler, or end user.
For more information and to download the forms, please visit the dedicated page on our website at the following link:
https://www.eurotronic.it/acquisto-climatizzatori-nuovo-decreto-f-gas
