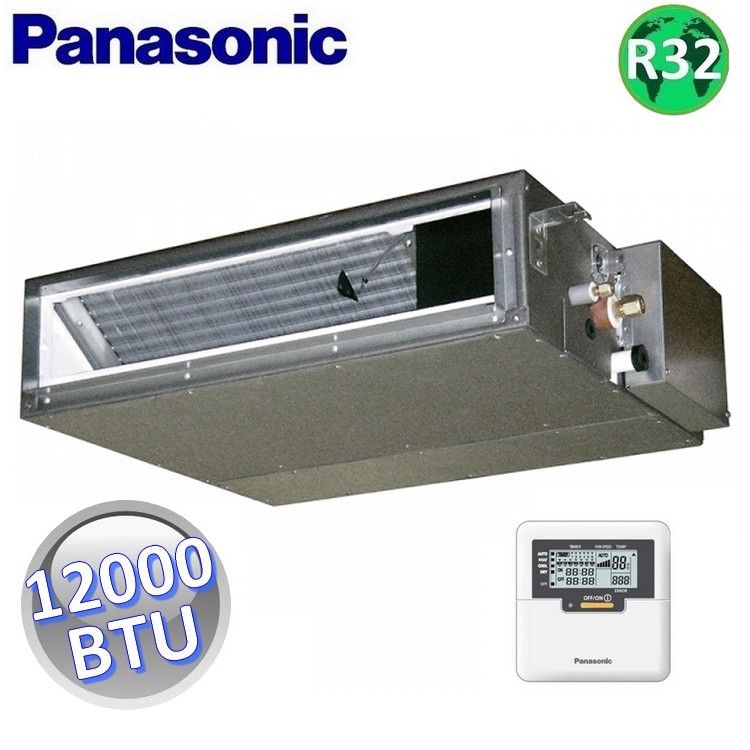

12000 BTU 3.5 kW ducted indoor unit, for single/multi-systems - PANASONIC

12000 BTU / 3.5 kW DUCTED INTERNAL UNIT

low static pressure - R32 high energy efficiency

Main features:

Compact low static pressure ducted indoor unit, only 200 mm high

Designed for homes, offices, shops and restaurants, this model is ideal for small spaces where air conditioning and heating must be well integrated and where high comfort and efficiency are required.

Eco mode for 20% energy savings

Weekly timer via cable included , possibility of setting up to 42 weekly programs

Simple control mode for fault detection

Drain pump included

Management via Panasonic Comfort Cloud App optional via CZ-TACG1 Wifi Kit

Model:

Series: domestic low static pressure, operation with R32 refrigerant gas

Unit Model: CS-Z35UD3EAW

Type: heat pump

Power: 12000 BTU

Performance:

Cooling power output (kW): 3.5

Heating power output (kW): 4.5

Dehumidification: 2.0 Lt/hr

Sound pressure (dB(A)): max 35 - min 26

Characteristics:

Liquid / gas pipe diameter (inches): 1/4” (6.35mm) - 3/8” (9.52mm)

Dimensions HxWxD(mm): 200x750x640

Weight 19 kg without packaging

Can be combined with external units:

CU-2Z35TBE / CU-2Z41TBE / CU-2Z50TBE / CU-3Z52TBE / CU-3Z68TBE / CU-4Z68TBE / CU-4Z80TBE / CU-5Z90TBE

Product Code: CS-Z35UD3EAW
