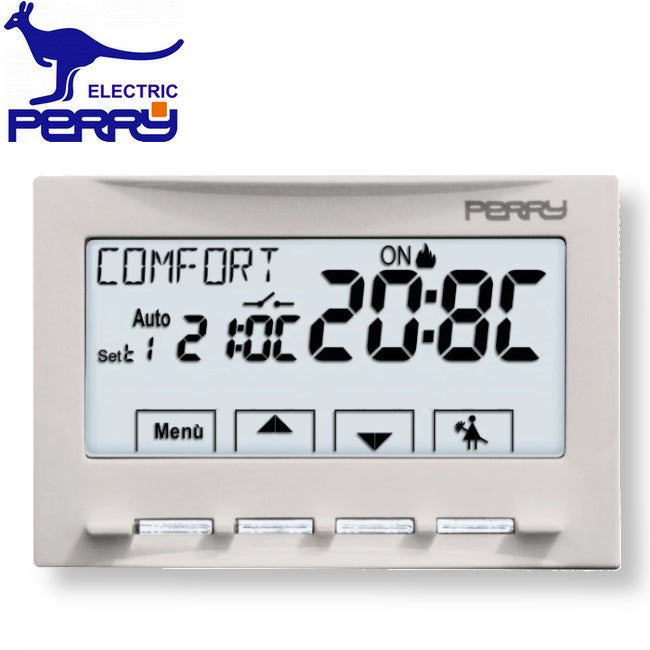

Perry 1TITE541 - 230V backlit electronic digital wall thermostat "NEXT" series

PERRY THERMOSTAT 1TITE541

BACKLIT NEXT SERIES

DESCRIPTION:

• Power supply 230V AC 50-60Hz
• 2”1/4 backlit LCD display
• Fixed or timed backlighting
• Output 1 potential-free changeover contact: 5(3)A/250V AC.
• ON/OFF operation with adjustable differential from 0.2 – 1.2°C or modulating with control period from 7 - 20 min
• 2 temperature levels + antifreeze
• Telephone control input
• Relay status indication
• EST/INV command
• Temperature set block
• Correction of detection according to product positioning
• Fixed or timed backlighting
• Adjustment range 5 - 37.7°C
• Dimensions (LxWxH) 65 x 52 x 47 mm

Product Code: 1TITE541
