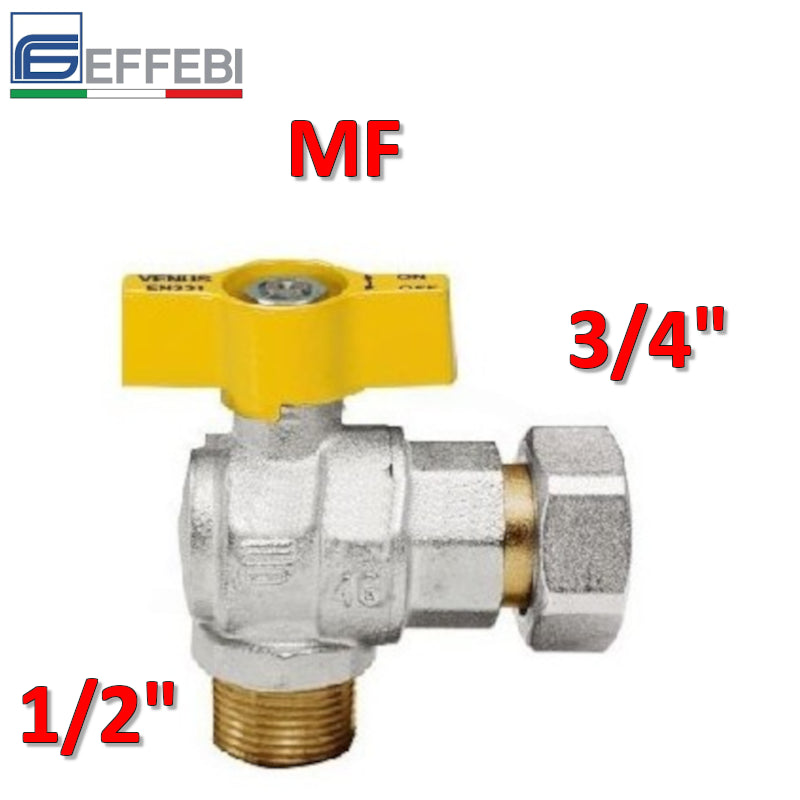

VENUS gas ball valve male 1/2'' Female 3/4'' reduced with tailpiece and square nut

VENUS GAS BALL VALVE

1/2" MALE - 3/4" FEMALE SQUARE SWIVEL

WITH SHANK AND SWIVEL

DESCRIPTION:

Ride:

• reduced.

Stem:

• explosion-proof.

Side seals:

• High strength virgin PTFE.

Top hold:

3 gaskets

1 PTFE ring - high pressure.

2 conical anti-friction PTFE seals - medium and low pressure.

• the valve body is that of the VENUS SQUADRA certified according to the EN331 regulation

• the VENUS valve complies with regulation (EU) 305/2011 CPR – Construction Products

Threaded ends:

• UNI ISO 228 swivel

• male and female valve UNI ISO 7/1 (UNI EN 10226).

Operating organs:

• aluminum butterfly.

Available colors:

• yellow.

All valves comply with Directive 97/23/EC and are 100% tested with an electronically controlled pneumatic leak test.

TEMPERATURE LIMITS

• from -20°C to + 60°C

PRESSURE LIMITS

• MOP5 (20)

Product Code: 1079G264XG
