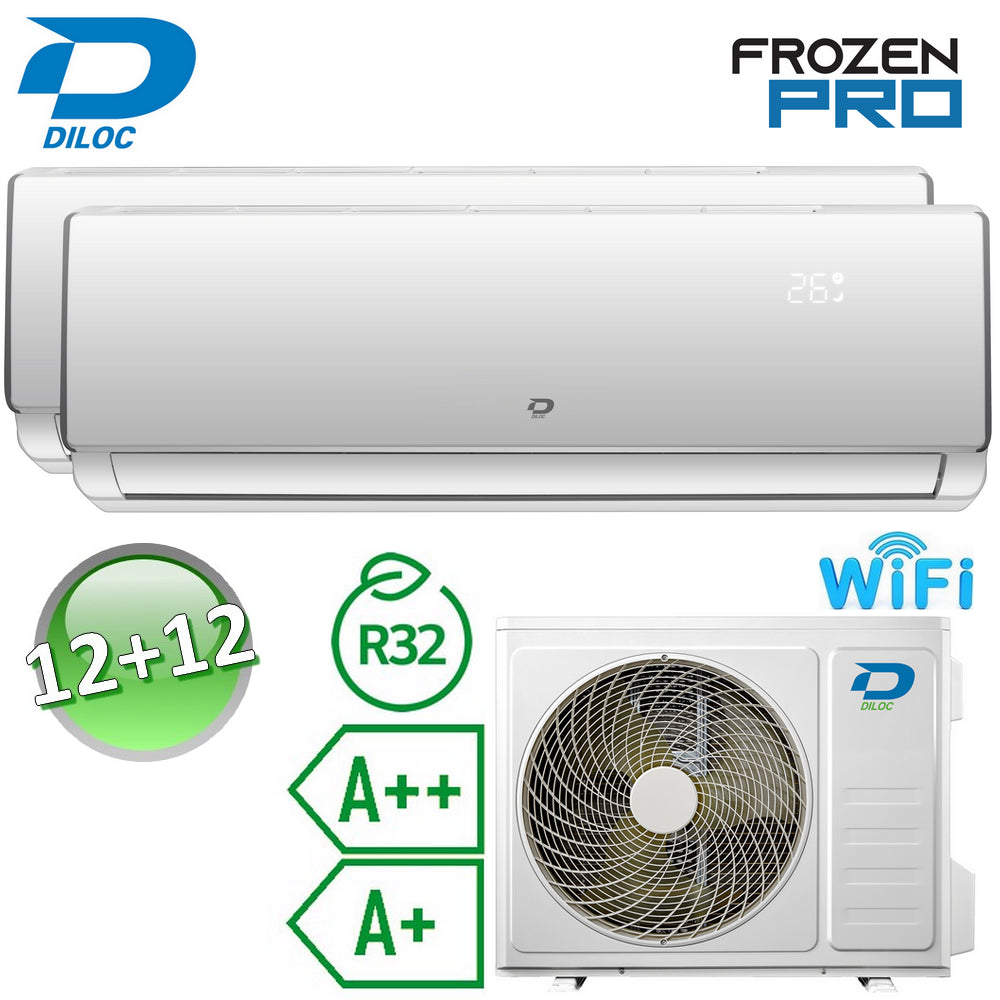

Diloc Frozen PRO 12000+12000 BTU R32 A++/A+ Dual Split Air Conditioner (UE 5.2) - Integrated WiFi

Smart Wi-Fi function allows you to control the air conditioners via Tablet, iPad and smartphone.
You can manage all the functions of the product.

Model:

• Series: Frozen PRO

• • 12000 BTU indoor unit model: FRPRO.35S

• External unit model: FRPRO.52D

• Type: heat pump

• Thermal power in cold mode: BTU/h 18000 (4200 ~1910 0) - Kw 5,2 (1,2 ~5,6 )

  Heating power: BTU/h 18050 (4400 ~196 00) - Kw 5,3 (1,3 ~5,8 )

• Wi-Fi Control - iOS and Android Application - Apple Store / Google Play

Energy Efficiency:

• Seasonal efficiency:
  SEER / SCOP (average climate): 6.2 / 4.0-4.6

• Energy Efficiency Class (Cooling): A++

• Energy Efficiency Class (Heating): A+/A++

Performance:

• Air flow rate Int. Unit FRPRO.35S m³/h max: 550

• • Sound Pressure Int. Unit FRPRO.35S (dB(A)) : 40-37-33-25-22

• Sound Pressure External Unit Max (dB(A)) : 65

• Cooling power consumption Watt: 1605 (280~2053)

  Heating power consumption Watt: 1418(250~2053)

Electrical data:

• Power supply (V/Hz/?) : 230/50/1

Characteristics:

• Refrigerant gas: R32 / 1.1 Kg

• Liquid / Gas Pipe Diameter (inches): 1/4” - 3/8”

• Maximum length of pipes with additional load: 25 m

• Maximum height difference (external unit above) 10 m

Dimensions and weight:

• External Unit WxDxH(mm): 835x360x605; 34.0 Kg without packaging

• • Internal Unit FRPRO.35S WxDxH(mm): 698x255x190; 6.5 kg without packaging

ASSISTANCE and WARRANTY

Assistance is guaranteed by Diloc centers located throughout the country.
