Panasonic 800 m3/h centralized VMC heat recovery unit - wall control included

Panasonic 800 m3/h centralized VMC heat recovery unit - wall control included

Regular price €2.477,76
Regular price Sale price €2.477,76
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
PANASONIC - HEAT RECOVERY UNIT 800 m³/h
FY-800ZDY8R - WALL CONTROL INCLUDED

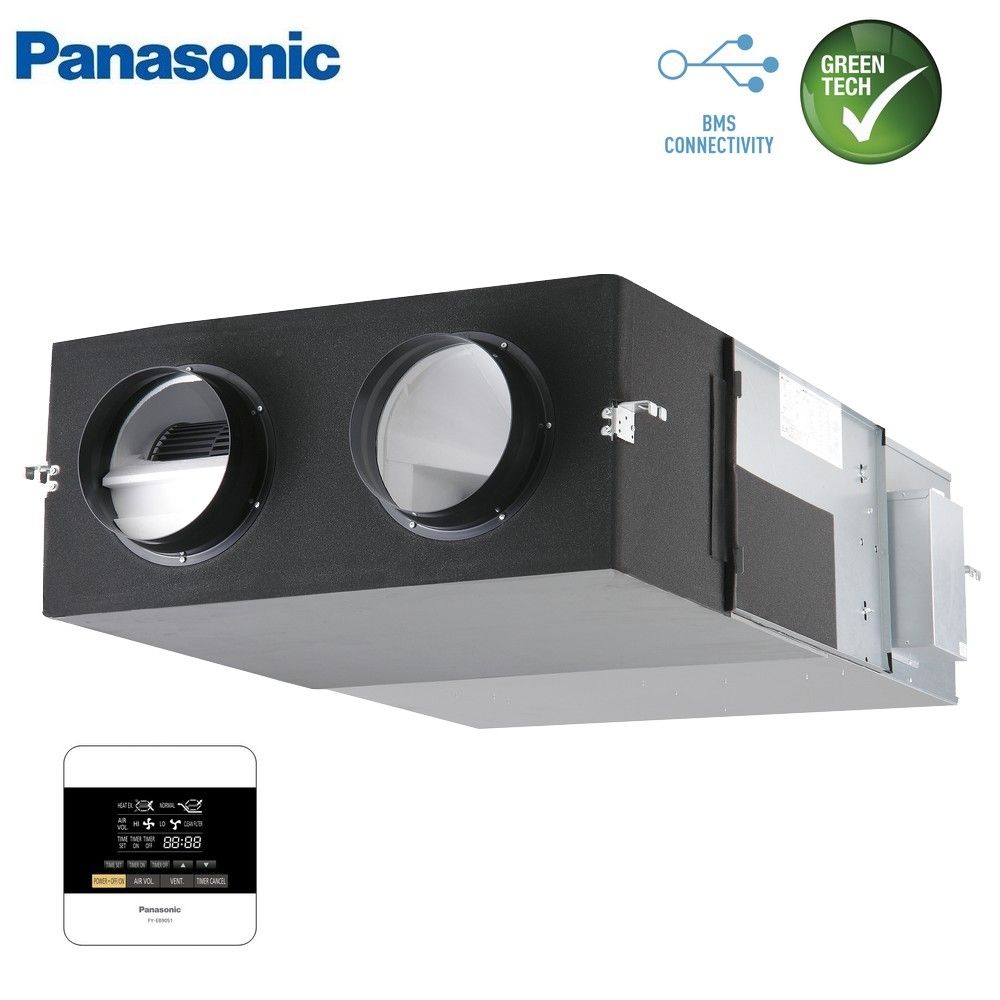

Panasonic 800 m3/h centralized VMC heat recovery unit - wall control included - FY-800ZDY8R

The Panasonic FY-800ZDY8R heat recovery unit, with a maximum air flow rate of 800 m3/h, is equipped with a class G2 filter made of nylon and polyester fibers that offer high dust retention capacity. The wired remote control, required for operating the unit, is included.

CHARACTERISTICS
A heat recovery unit is a dual-flow ventilation unit. Air flows exchange heat within the exchanger, with the warmer flow transferring heat to the colder flow depending on efficiency. These units can recover up to 77% of the outgoing heat and are an environmentally friendly solution that saves energy and avoids unnecessary waste of resources. The load required for air conditioning is reduced by approximately 20%, resulting in energy savings.

The heat exchanger in this device is a counter-flow exchanger: this technology involves a longer common path and a longer duration of the crossing, so the heat exchange effect is not reduced even if the element is thinner.

The heat recovery unit is equipped with the FreeCooling function, which allows you to use fresh outside air to cool the internal rooms during the mid-seasons (simply using the contact on the recovery unit's electrical panel).

POSSIBILITY OF INSTALLATION IN INVERTED POSITION
The use of straight-line flow ducts has allowed for a simplified structure within the units. Since each of these units can be installed inverted, a single pair of units requires only one inspection opening in the false ceiling, which, by allowing for sharing, simplifies the duct routing.

Product Code: FY-800ZDY8R

Technical data sheet - www.eurotronic.it
