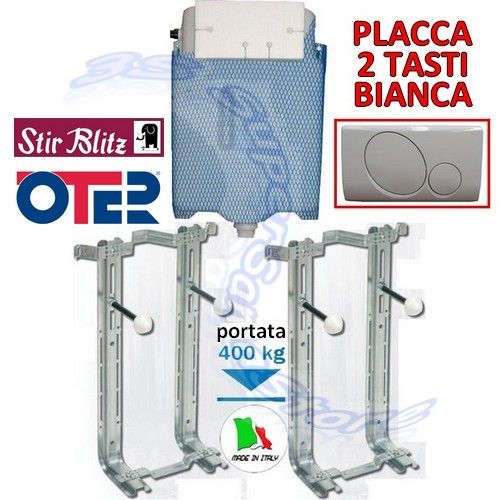

WALL-HUNG SANITARY KIT WITH OTER BRACKETS AND STIR BLITZ CISTERN WITH 2-BUTTON PLATE IN WHITE

WALL-HUNG SANITARY INSTALLATION KIT

INCLUDING:

1 OTER WC BRACKET

1 OTER BIDET BRACKET

1 EUROPA DUO STIR BLITZ BUILT-IN WC CISTERN

1 WHITE DOUBLE BUTTON PLATE

CASSETTE SPECIFICATIONS:

• Brand: STIR BLITZ
• Model: EUROPA DUO
• Double control box
• Possibility of draining 3-6 Lt - or 6-9 Lt
• Polyethylene hull coated with anti-condensation system
• Complete with flush pipe D.50/40mm
• Complete with clamp and rosette for external connection to the toilet
• COMPLETE WITH WHITE DOUBLE BUTTON PLATE
•

BRACKET SPECIFICATIONS:

• Support for fixing the sanitary fixture only, whether it is a WC or BIDET.

• Complies with the standard: UNI EN 997:2004 - Installed in the wall, it is tested for a load of 400 kg.

• Sanitary interaxis: 160 - 180 – 200 - 230 [mm].

• Material: High-strength, hot-dip galvanized Sendzimir structural sheet metal, thickness 20/10.

• The assembly between the uprights and the crosspieces takes place with a PIN/HOLE coupling, blocked by trilobate self-tapping screws, which guarantees rigidity to the structure and the maintenance of the set centre distance.

• Possibility of adjusting the height of the sanitary fixtures during pipe installation.

• The upper crosspiece allows the waste water pipe to be laid from the cistern without any interference, even when it is insulated.

• It is mounted using a PH3 cross-head screwdriver and a 19 mm open-end wrench.

Product code KIT: 9600241-SAS0001x2
