Perry 1IOIOWF02 - 2-Module Wi-Fi Time Switch for DIN Rail

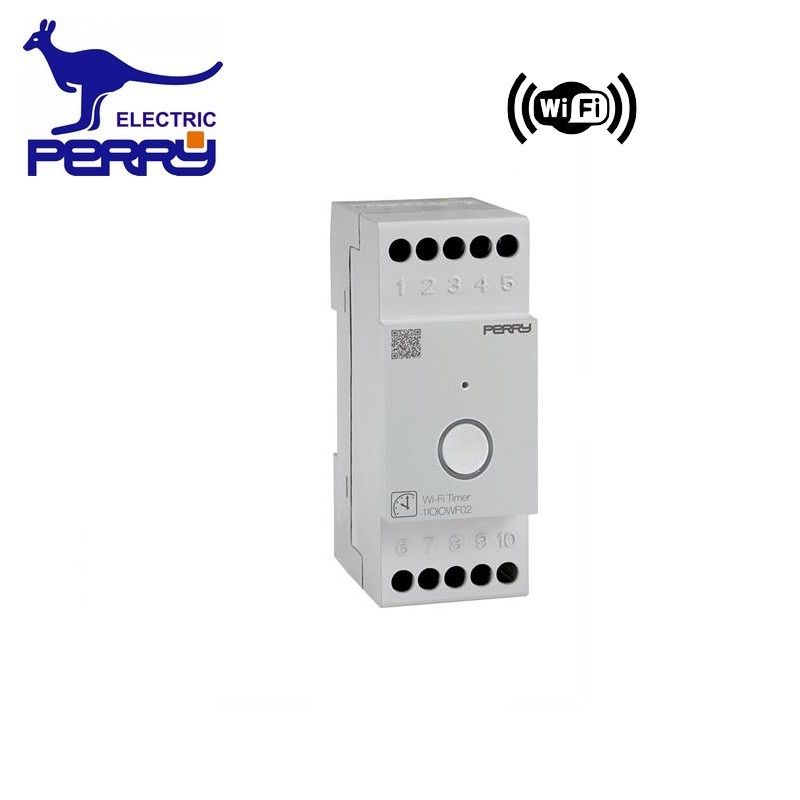

PERRY 1IOIOWF02

2-module Wi-Fi time switch for DIN rail

The Perry Wi-Fi time switch, in the presence of a Wi-Fi network, can be programmed, consulted and modified via an App from iOS and Android smartphones and tablets via the Internet.

The App allows you to manage a single device or groups of devices and offers the possibility of consulting historical management records to optimize programs and intervention times.

TOTAL CONTROL
The app lets you manage all your connected devices from a single screen. The Perry Timer app offers a complete solution that includes timer, random, countdown, and cyclic functions.

EFFICIENT MANAGEMENT
All switches and therefore all the devices connected to them can be managed quickly and easily via the App just as if it were a remote switch.
It is also possible to analyze the usage record of each individual switch to verify the exact period of operation throughout the day.

SHARED MANAGEMENT
You can enable sharing of one or more devices with other users. This will allow you to manage the time switches from multiple smartphones.

DEVICE GROUPS
Creating one or more groups of devices allows the simultaneous management and programming of multiple time switches.

FEATURES

• Timer
• Countdown

• Random

• Cyclic

• Intervention memory

TECHNICAL CHARACTERISTICS

• Power supply 230V AC 50 - 60Hz

• Contact ratings 16(2) A / 250V AC

• Maximum number of programs: up to 15 weekly programs per type

• Minimum ON - OFF insertion time 1 minute

• Views via App

• Maximum cross-section of cables at terminals 6 mmq

• Degree of protection (IP) IP20 - IP40 (rear panel)

• Output type: Captive screw terminals

• Insulation class II

• Relay ON/OFF signaling via status LED

• Power reserve min. 72 hours

• Time tolerance ± 0.5 sec/day

• Operating temperature limits 0°C +50°C

• Storage temperature -10°C +65°C

• DIN rail / back panel installation

• Thermoplastic casing - grey RAL 7035

• Type of use: civil / tertiary / industrial

• On-board controls ON/OFF/Reset button on the front

• Digital clock setting accuracy for hours/minutes

• Dimensions (WxDxH) 35 x 60 x 90 mm

Product Code: 1IOIOWF02
