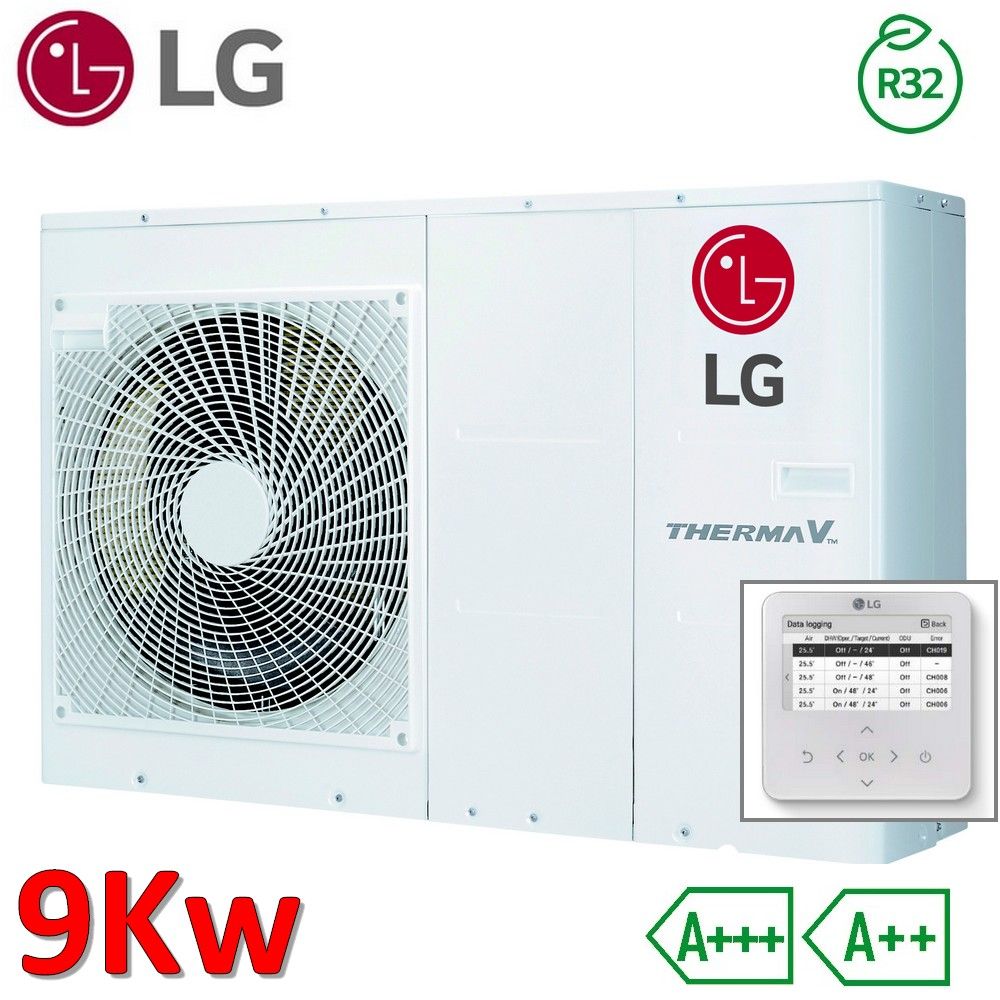

LG Therma V Monobloc S R32 9.0 kW air-to-water heat pump

Air-to-water heat pump
LG Therma V Monobloc S R32 9.0 kw

DESCRIPTION:

• THERMA V Monobloc S R32 is the second generation of LG's Monobloc R32, boasting reduced noise and the best performance of the THERMA V series. Monobloc S R32 combines the interior and exterior as a single module and is connected only by water pipes, eliminating the need for refrigerant lines. Additionally, hydronic components such as the plate heat exchanger, expansion vessel, water pump, flow sensor, pressure sensor, air vent valves, and safety valve are located inside the unit. Monobloc S R32 provides excellent heating performance, especially at low temperatures, while also reducing its carbon emissions.
• Therma V is also already set up for connection to photovoltaic systems and external heat sources such as gas boilers.
• Therma V is ideal for any type of application, and also respects the environment by using clean and renewable energy: low temperature heat contained in the atmosphere.
• LG has always been committed to pursuing innovation, in order to develop cutting-edge technologies for sustainability, energy efficiency and the reduction of CO2 emissions. It is with these objectives that the Therma V Monobloc range using R32 refrigerant was developed and produced.

CHARACTERISTICS:

• Constant thermal power, 100% nominal capacity up to -15°C external (90% 16kW)
• Maximum water temperature at 65°C (without resistance) up to -4°C external (60°C up to -10°C)
• Wide operating range: from -25 to 48°C external
• Heating energy class A+++ (low temperature water, Average climate)
• Special scroll compressor with flash gas injection (LG patent)
• Reduced noise: max sound power 61 dB(A)

• FIRST START-UP BY AN AUTHORIZED LG SERVICE CENTER, INCLUDED IN THE PRICE (only in Italy)

Product Code: HM091MR.U44
