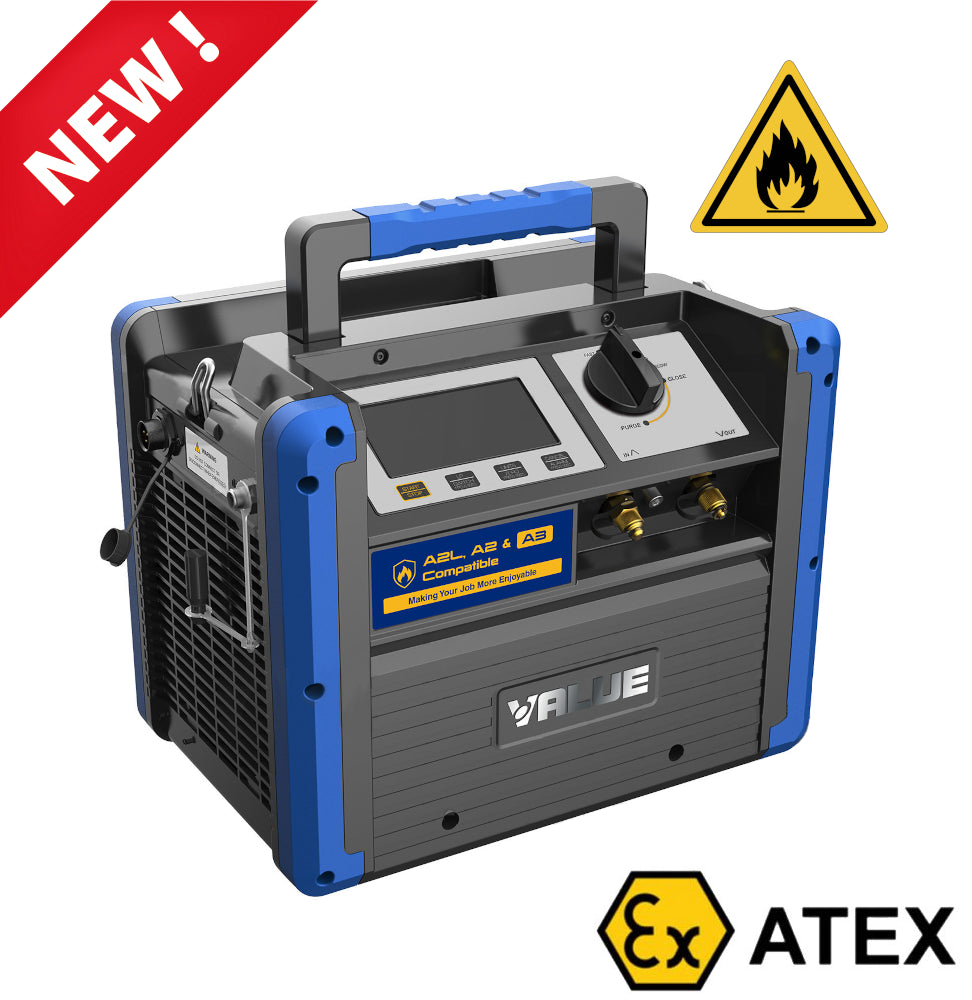

ATEX certified digital recovery unit for flammable gases 1 HP-0.75 KW, 510 kg/h in push/pull, also suitable for refrigerants

FLAMMABLE GAS RECOVERY SYSTEM

FILTER DRIER INCLUDED ATEX marking

Compatible refrigerants:

• HC (hydrocarbons) in flammability class A3, A2 and A2L including propane (R290) and isobutane (R600a)

• HFO including A2L refrigerants such as R1234yf, R455A, R454C, R448A, R449A, R452A etc.

• Commonly used HFCs, including R404A, R410A, R32, R134a, R407C and all class III, IV and V refrigerants

Recovery unit suitable for refrigerants class I, division 2, group D T4.

Ex marking: CSANe 22ATEX1032X

Tested according to EN IEC 60079 0:2018, EN IEC 60079 7:2015+A1:2018, EN 60079 11:2012, EN IEC 60079 15:2019, EN ISO 80079-36:2016 and EN ISO 80079 37:2016. The VRDDF recuperator is designed and tested in accordance with UL 121201, CSA C22.2 No. 213-17 and EN (IEC) 60079-7 standards. The VRDDF recuperator is equipped with a certified explosion-proof relay, a safety circuit to limit the ignition energy, operating temperature limitation systems, component insulation, etc., making the equipment suitable for working with refrigerants with flammability classes A2L, A2 and A3.

Characteristics:

• High recovery speed with oil-free compressor

• 1 HP-0.75 kW DC brushless motor

• Speed ​​3000 rpm

• Dryer filter included

• Self-purge function

• Cooling fan

• Easy-to-read backlit LCD display

• Rugged construction for heavy duty use

Specifications:

• Power supply 220 V single phase 50 Hz

• 1 HP-0.75 kW motor

• Engine speed 3,000 rpm

• Max current consumption 6.5 A

• Oil-less, air-cooled double piston compressor

• 2-row capacitor, oversized for high recovery speeds in total safety

• Waterproof design with IP54 protection

• Operating temperature: 0-40 °C

• Safety valve (shut-off/automatic switch-off) at 38.5 bar

• Recovery capacity (category V - R410A, R404A, R32, R507): 9.5 kg/minute in push/pull, 4.2 kg/minute liquid phase, 0.54 kg/minute vapour phase

• Dimensions: 370 x 250 x 300 mm.

• Weight: 11 kg

• Packaging dimensions: 400 x 275 x (h) 320 mm.

• Package weight 12 kg.

Product Code: VRDDF
