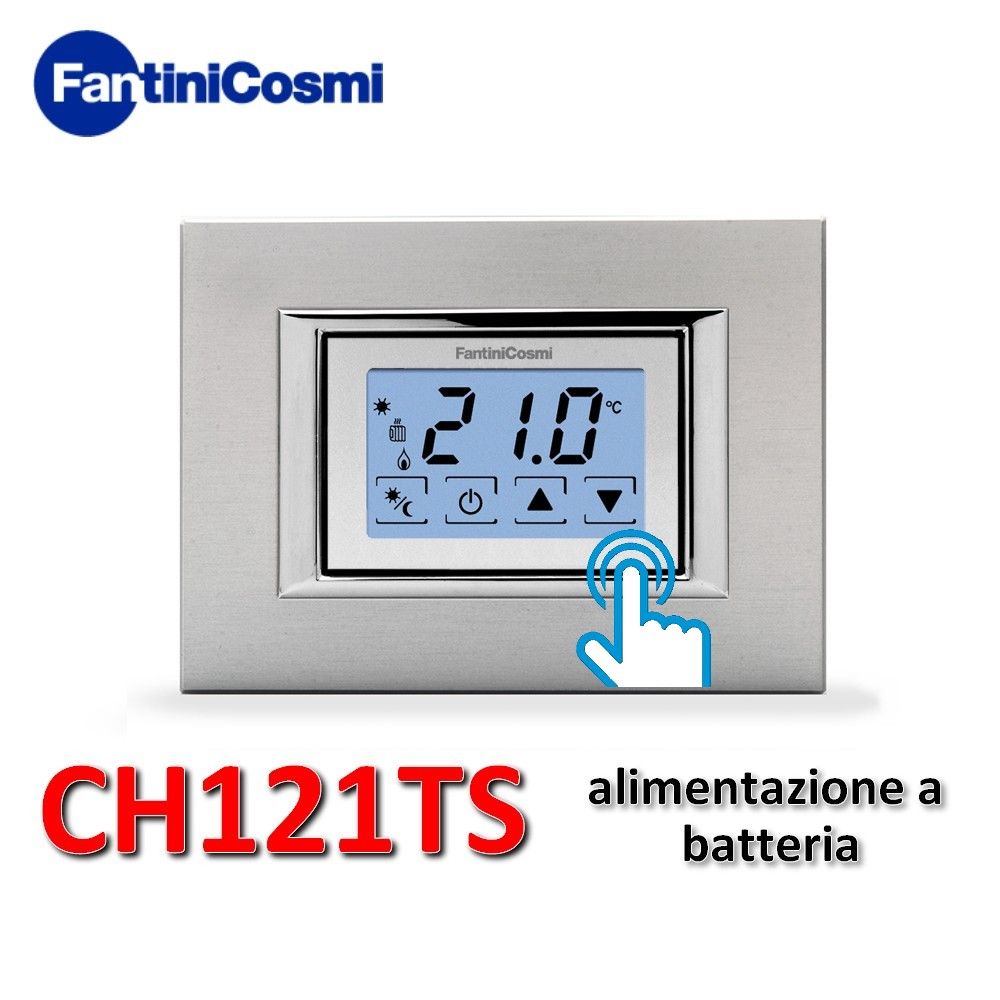

CH121TS - Battery-Powered, Built-In Backlit Touchscreen Thermostat - Fantini Cosmi

TOUCHSCREEN ROOM TEMPERATURE CONTROLLER

BUILT-IN - INTERCHANGEABLE COVERS

FANTINI and COSMI - CH121TS

BATTERY POWERED

Description:

Built-in microprocessor-based electronic thermostats for controlling heating and air conditioning systems

Model CH121TS operates with 2 AAA 1.5V alkaline batteries without connections to the mains.

The kit includes:

- 3 COLORED COVERS
white, silver, anthracite

- 3 SPECIAL COVERS for Bticino Axolute, Ave Sistema 44, Eikon Evo, and Arkè
white, silver, anthracite

- 3 PAIRS OF COLORED ADAPTERS
white, silver, anthracite

- 1 PAIR OF ADAPTERS for BTicino Matix
white

- 3 FRAMES to offer compatibility with the most popular plates

Mixed LCD display: graphic, symbols and seven-segment digits

LED backlight (blue)

Select the backlight duration.

Choose whether to display the temperature in Celsius or Fahrenheit.

Maximum ambient temperature 45°C

Adjustable differential.

Degree of protection IP20.

Electrical characteristics:

Contact rating 5(3)A 250Vac.
Power supply without connections to the mains with 2 AAA 1.5V alkaline batteries for CH121.
Microdisconnect (1BU).
Voltage-free switching contact.

Installation:

Flush mounting in 3-module boxes type 503 using 2 screws (supplied)
Connection to the user with 2 wires.
Mount the thermostat 1.5 meters above the floor, away from stoves, heat sources, windows and doors.

The following plates can be applied without any connecting accessories:

Product Code: CH121TS
