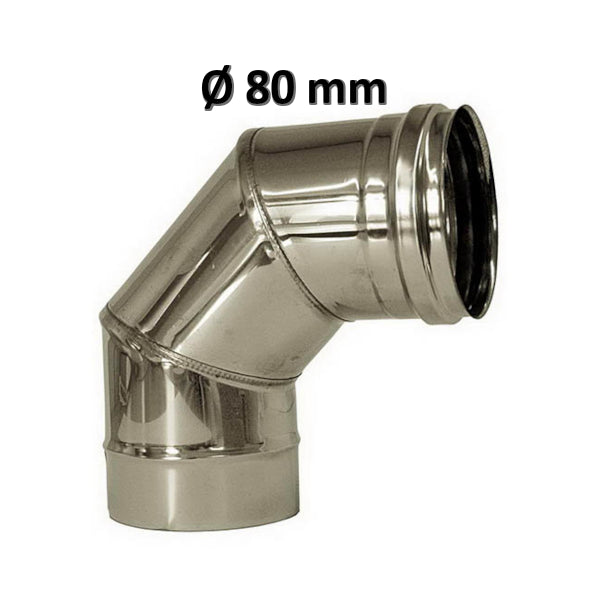

90° bend Ø 80 mm in stainless steel for single-wall chimney flue

90° BEND in STAINLESS STEEL

CHARACTERISTICS

Category: CHIMNEY

90° bend for DN 80 flue pipe. Single-wall 316 stainless steel pipe. 90° bends are used to create deviations or offsets. They can be used in both the flue pipe (horizontal) and the flue.
Flue element made of 0.5 mm thick 316 stainless steel. TIG welding without filler material ensures high resistance to corrosion caused by acid condensation and ease of maintenance. The various elements are connected via a male/female socket joint. The system is CE certified in compliance with the EN1856-2:2009 standard. It withstands operating temperatures of up to 600°C in negative pressure (n1) without a gasket, and 200°C in positive pressure (p1) using the included silicone gasket , which guarantees the joints are perfectly sealed against gases and condensation. It also complies with the UNI/TS 11278:2008 installation standard.
Designation with gasket: EN 1856-2 – T200 – P1 – W – V2 – L50040 - 0
Designation without gasket: EN 1856-2 – T600 – N1 – D– V2 – L50040 – G600

Product Code: C90.80AC
