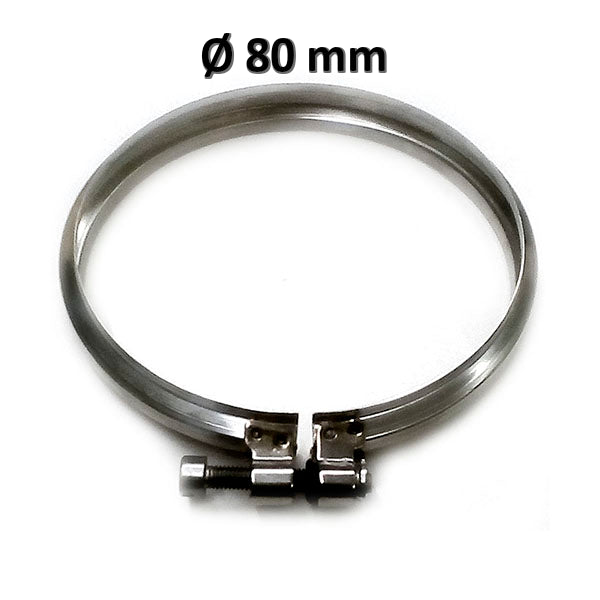

Chimney pipe clamp Ø 80 mm for 316 stainless steel pipe and fittings

LOCKING BAND

CHARACTERISTICS

Category: CHIMNEY

Chimney flue clamp DN 80. Single-wall 316 stainless steel pipe. The clamp is used to connect various elements to ensure mechanical stability.
Flue element made of 0.5 mm thick 316 stainless steel. TIG welding without filler material ensures high resistance to corrosion caused by acid condensation and ease of maintenance. The various elements are connected via a male/female socket joint. The system is CE certified in compliance with the EN1856-2:2009 standard. It withstands operating temperatures of up to 600°C in negative pressure (n1) without a gasket, and 200°C in positive pressure (p1) using the special silicone gasket sold separately, which guarantees the joints are perfectly sealed against gases and condensation. It also complies with the UNI/TS 11278:2008 installation standard.
Designation with gasket: EN 1856-2 – T200 – P1 – W – V2 – L50040 - 0
Designation without gasket: EN 1856-2 – T600 – N1 – D– V2 – L50040 – G600

Product code: FST.80AC
