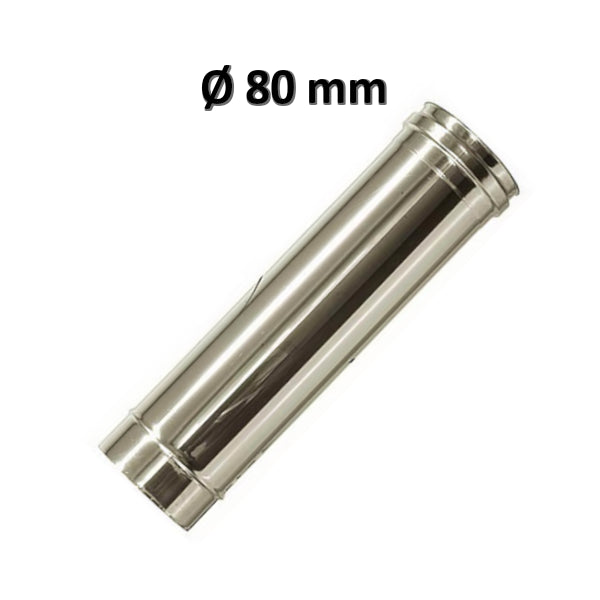

Steel pipe Ø 80 L 500 mm / 50 cm single wall for chimney

SINGLE WALL STAINLESS STEEL PIPE

CHARACTERISTICS

Category: CHIMNEY

Stainless steel pipe 0.50 m Dn 80. 316 stainless steel flue, single wall.
Element that makes up the flue or smoke duct.
Flue element made of 0.5 mm thick 316 stainless steel. TIG welding without filler material ensures high resistance to corrosion caused by acid condensation and ease of maintenance. The various elements are connected via a male/female socket joint. The system is CE certified in compliance with the EN1856-2:2009 standard. It withstands operating temperatures of up to 600°C in negative pressure (n1) without a gasket, and 200°C in positive pressure (p1) using the included silicone gasket , which guarantees the joints are perfectly sealed against gases and condensation. It also complies with the UNI/TS 11278:2008 installation standard.
Designation with gasket: EN 1856-2 – T200 – P1 – W – V2 – L50040 - 0
Designation without gasket: EN 1856-2 – T600 – N1 – D– V2 – L50040 – G600

Product code: TU50.80AC
