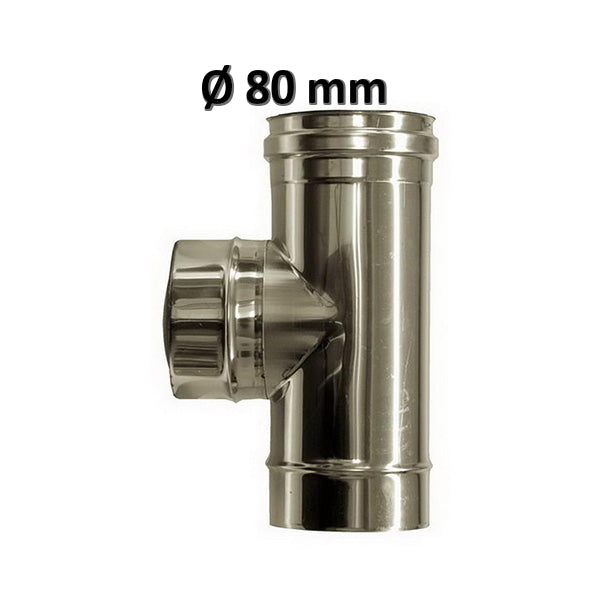

90° Tee T-fitting Ø 80 mm male steel connection for chimney flue

STAINLESS STEEL T-FITTING

CHARACTERISTICS

Category: FLEXIBLE CHIMNEY

90° T-fitting for DN 80 flue pipe. Single-wall 316 stainless steel pipe. Male-female T-fitting with a central male connection of the same diameter. Allows you to connect the flue pipe to the flue.
Gaskets and locking clamps must be purchased separately.
Flue element made of 0.5 mm thick 316 stainless steel. TIG welding without filler material ensures high resistance to corrosion caused by acid condensation and ease of maintenance. The various elements are connected via a male/female socket joint. The system is CE certified in compliance with the EN1856-2:2009 standard. It withstands operating temperatures of up to 600°C in negative pressure (n1) without a gasket, and 200°C in positive pressure (p1) using the included silicone gasket , which guarantees the joints are perfectly sealed against gases and condensation. It also complies with the UNI/TS 11278:2008 installation standard.
Designation with gasket: EN 1856-2 – T200 – P1 – W – V2 – L50040 - 0
Designation without gasket: EN 1856-2 – T600 – N1 – D– V2 – L50040 – G600

Product code: TEM.80AC
