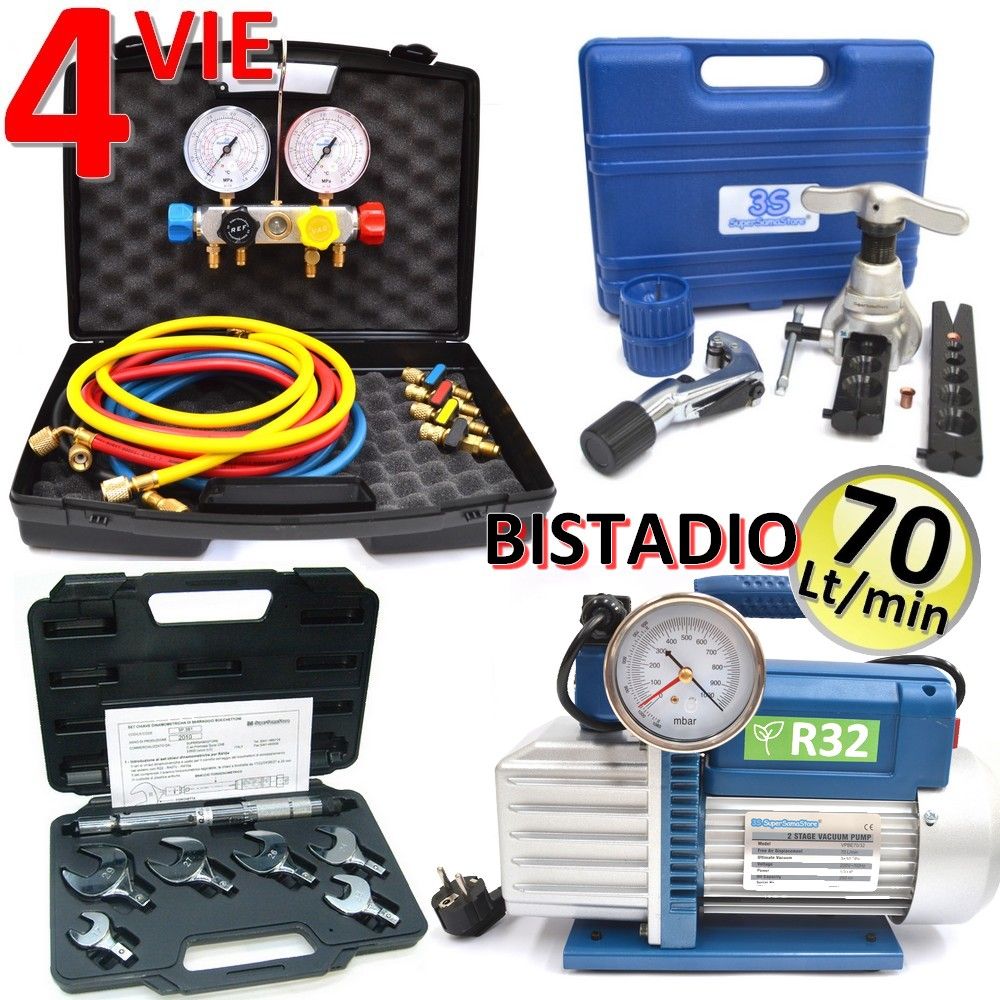

Professional air conditioning kit - 70 Lt R32 pump, set of 4-way pressure gauges, flare tool and torque wrench

70 LT TWO-STAGE VACUUM PUMP ALSO APPROVED FOR R32 GAS
+
4-WAY MANOMETER SET
with scales R410A - R32 - R407C - R134A

+

FRICTION FLAPS MACHINE

with deburrer and pipe cutter

+

TORQUE WRENCH

CHARACTERISTICS:

vacuum pump:

Two-stage, 70-liter/minute model - specifically designed for R32 and R1234yf gases for evacuation according to DIN 8975. This pump model is manufactured with special fireproof insulation on the electrical components, which allows it to be certified against possible explosions or deflagrations caused by the flammability of the two gases R32 and R1234yf. The pump can also be used on systems with other refrigerant gases such as: R410a / R407c / R404a / R22...

• equipped with vacuum gauge to display vacuum operation
• equipped with a solenoid valve to prevent oil from returning in the event of an accidental blackout.
• equipped with on-off switch
• oil level indicator
• 1 pack of oil included
• power cord with shuko plug
• ergonomic carrying handle
• Technical data:
• two-stage model
• suction capacity in liters per minute 70 - 2.5 cfm
• engine power 1/3 hp
• power supply 220v - 50hz
• final vacuum: 3x10-1 pa - 0.003 mbar
• oil in the pump 310 ml.
• dimensions 320x160x240 (mm)
• weight 9.30 kg
• 1/4' SAE connection

Pressure gauge set:
Manifold with 4 blue-black-yellow-red control valves on the aluminum body that control the 4 connection outlets. Universal with gas scales R410a / R32 / R407c / R134a, pressure gauge hanging hook, four 1500 mm long blue-black-yellow-red hoses with 5/16 SAE connections on both ends, one of which is equipped with a valve press. 2 tap-fittings for R32 and R410a, male 5/16 SAE with valve press to attach to the floating ends of the hoses for independent closures. 2 tap-fittings for R407c and R134a, male 5/16 SAE, female 1/4 SAE with valve press to attach to the floating ends of the hoses for independent closures. 1 plastic pressure gauge set case.

Folder:

• Fully metal folder and jigs
• Inch jig for pipes with diameters of 5/16” - 1/4” - 3/8” - 1/2” - 5/8” - 3/4”
• Metric measurement template for pipes with diameters of 6 - 8 - 10 - 12 - 16 - 19 (mm)
• Equipped with a clutch system, automatic detachment of the flaring once the flare is completed
• Equipped with a special eccentric helical tip, for more precise countersinks
• Pipe cutter 4-28 mm - with retractable pipe deburrer
• Pipe flaring tools with steel blades - for internal and external flaring

Torque wrench:

• The wrench set is used for the correct tightening of the coupling nozzles in systems with R22 R410 R407 R134...
• The set includes the adjustable torque arm
• Tightening torque from 10 to 75 Nm
• Set consisting of 6 keys for diameters of 17-22-24-26-27-29 - Supplied in a case

Product code: KT.PROF70R32
