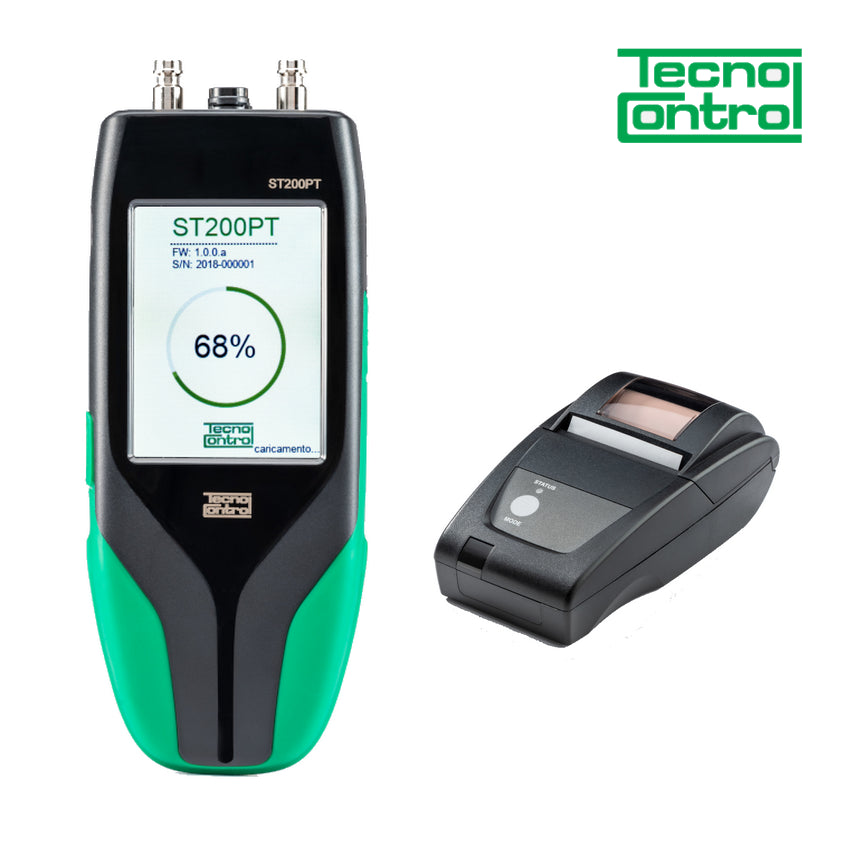

Touchscreen LPG/Methane Gas System Leak Test Kit with Printer - ST200PT Tecnocontrol

GAS SYSTEM LEAK TEST KIT

ST200PT Tecnocontrol

Characteristics:

The ST200PT is the most innovative instrument for leak testing. Just a few simple steps, combined with the best electronic technology available and excellent precision and repeatability, make the ST200PT an indispensable tool for everyday work.

Thanks to its internal flash memory, the names of the technicians who will use the instrument as well as customer records can be stored. This allows you to associate tests with the customer and the technician who performed the inspection, ensuring complete traceability of every operation. The instrument is supplied complete with a sturdy IP67 waterproof case containing all the fittings needed for connection to the pipes. The ST200PT/S model also includes an infrared printer for printing test results.

Data transmission is also possible via the Bluetooth+Wi-Fi module (optional) or via the USB Type-C output. Tests can also be stored on a dedicated microSD card (not included). A data logger function, color touch graphic display, and an externally rechargeable lithium battery complete the instrument's package.

ST200PT performs the leak test completely automatically: simply turn it on, select the desired test and wait for the result.

MEASUREMENT SPECIFICATIONS

• Pressure: Range LOW -50: 600mbar (resolution 0.01 mbar)
• Pressure: Range HIGH 6 bar (resolution - 0.1 mbar)
• Pressure: differential measurement +/-1 bar (resolution - 0.1 mbar)
• Internal temperature +5:+40°C (resolution - 0.1 °C)

DIET

• Connecting the power supply/charger with the USB type C port of the instrument or battery
• Powered by 3.7V/5000mAh rechargeable lithium-ion battery pack
• Interchangeable and rechargeable battery, even separately from the instrument
• Alternative power supply from 4 AA alkaline or rechargeable batteries (not included)
• Battery life - 14 hours maximum, 6 hours minimum
• Charging time - approximately 4 hours

DATA MANAGEMENT

• Internal flash memory
• Additional memory for microSD card (not included)
• Infrared printer
• USB Type-C data connection

INSTRUMENT FEATURES

• Integrated pump with maximum pressurization up to 600 mbar
• Support by integrated magnets
• GAS connection 2 DN25 sockets
• 240x320 pixel touch screen color graphic display
• Total touch user interface (on only, off with button)
• Operating temperature: +5:+40°C
• Storage and transport temperature: -20:+50°C
• Protection class IP40
• Weight 500g (with Li-ion battery pack included)
• Dimensions: 210x80x43

ADDITIONAL FUNCTIONS

• Manometer function for measuring static and dynamic pressure with minimum and maximum indications
• Real-time measurement graph
• Datalogger function
• Automatic volume measurement
• Automatic autozero
• Possibility of conversion into the various units of measurement provided
• Measurement of differential pressures
• Measurement of ambient humidity using a dedicated probe (optional)
• Free programming of all parameters by the operator
• Calendar and internal clock
• Test time display
• Temperature compensation
• Storage of customizable reports with user data

Product Code: ST200PT
