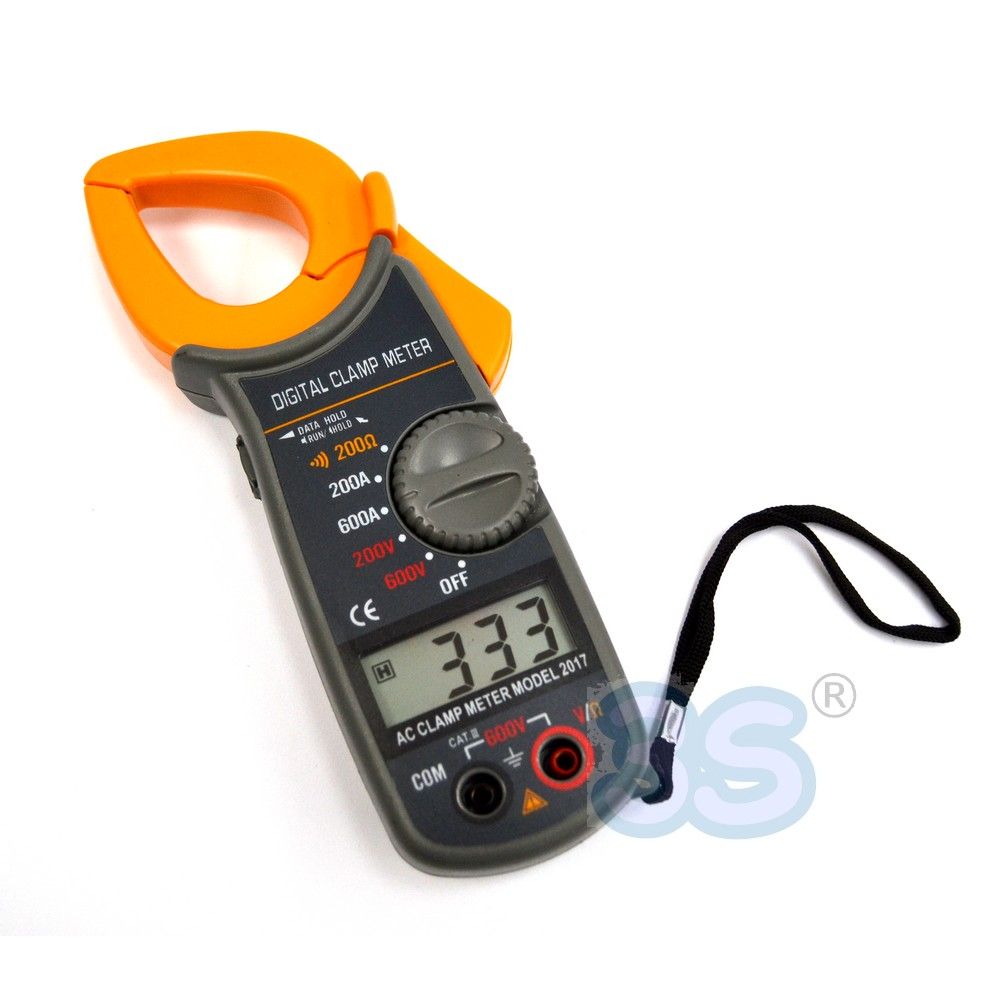

CM-2017 digital clamp meter with test leads and case

CM-2017 Digital Clamp Meter

Digital clamp meter compliant with IEC 1010IEC61010-1, UL3111 and VDE0411 standards.

Characteristics:

• Three functions in one: AC current, AC voltage and resistances;

• For resistance tests, an audible signal is provided;

• Frequency response from 40Hz to 1kHz for AC currents and voltages;

• Measurements can be made up to a maximum of 600A and 600V;

• The 'Data Hold' function allows the instrument to be held in place, giving the possibility of reading the detected value later.

Technical specifications:

• Altitude: < 2000 m;

• Operating temperature: -10 to +50°C, (<80% RH);

• Storage temperature: -10 to 60°C (<65% RH, without battery);

• Max voltage between terminals and earth: 600Vrms;

• Response time: about 1 second (2 seconds in resistance range);

• Display: 3 1/2 digit LCD with max reading 1999;

• Automatic display of functions and symbols;

• Dimensions (WxHxD): 208 x 90 x 40 mm;

• Weight: about 400 gr (battery included);

• Accessories: User manual in Italian and English - Test leads - Carrying case and 9V battery.

Product Code: CM-2017
