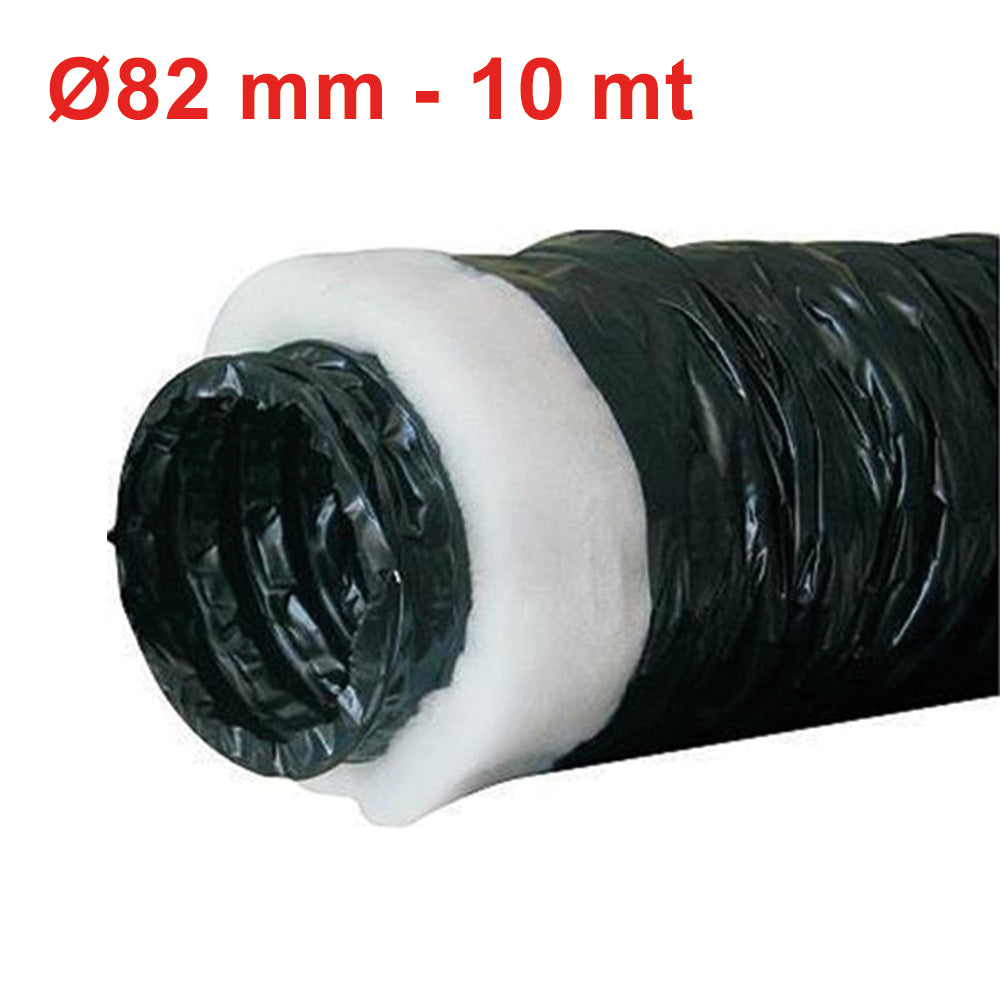

Flexible, tear-resistant, insulated polyethylene conduit, class 1 - Ø 82 mm, 10 m roll
Flexible, tear-resistant, insulated polyethylene conduit, class 1 - Ø 82 mm, 10 m roll
Couldn't load pickup availability
FLEXIBLE DUCT in TEAR-RESISTANT POLYETHYLENE
with 25mm POLYESTER INSULATION
Ø 82mm - 10m roll
Characteristics:
Black polyethylene duct with harmonic steel spiral embedded inside
Polyester insulation with a density of 16kg/ m3 and a thickness of 25mm
External duct in black polyethylene
Fire reaction class 1 (DM 26/06/84 art.8)
Certification number CSI/0132/08/RF
Approval PD2229C20D100010
-
Diameter 82 mm
Packs of 10m length
Operating temperature between -20 °C and +70 °C
Maximum air speed 30 m/s
Maximum operating pressure 2,000 Pa
F10 THERM
Flexible duct made of additive-treated polyolefin resin film (100 micron wall thickness) and a spring steel wire spiral. Thermally insulating polyester fiber jacket (25 mm thick/16 kg/m3). External vapor barrier made of additive-treated polyolefin resin.
Insulation:
- 25mm / 16kg/m3 – standard
- 50mm / 16kg/m3 – on request
Thermal resistance at 20°C
- R = 0.58m2 K/W (UNI EN 12664:2002)
CHARACTERISTICS
- COLOR : black
- SIZES : from 10m standard
- PRODUCTION DIAMETERS : from 80 to 406 mm
- OPERATING TEMPERATURES : -20°C /+90°C (+110°C peaks)
- BEND RADIUS : 0.8-1.5 x ?
- AIR SPEED : max 20m/sec
- PRESSURE : max 200 mm approx
- REACTION TO FIRE:
CLASS IT : Class 1 (DM 26/06/84)
Homologation No.: RE1205C20D100006
EU CLASS:
INTERNAL PIPING AND VAPOR PROTECTION
Class B-s1, d0 (EN 13501-1:2009)
THERMAL INSULATION MATTRESS
Class B-s2, d0
CLASS FR :
INTERNAL PIPING AND VAPOR PROTECTION
Class M1 NF P 92-507:2004
THERMAL INSULATION MATTRESS
Class M1 NF P 92-507:2004
GREEN BUILDING
It contributes to obtaining credits from the major international building sustainability rating systems:
- LEED : IP, EA, MR
- WELL : MATERIALS, COMMUNITY
- BREEAM : MAN, ENE, WST
CERTIFICATIONS
Reaction to fire. Non-toxic fumes. Thermal and acoustic absorption.
APPLICATIONS
Air conditioning. Single- and dual-flow mechanical ventilation. Reduced condensation and heat loss.
Product Code: CDTPLTI.82
