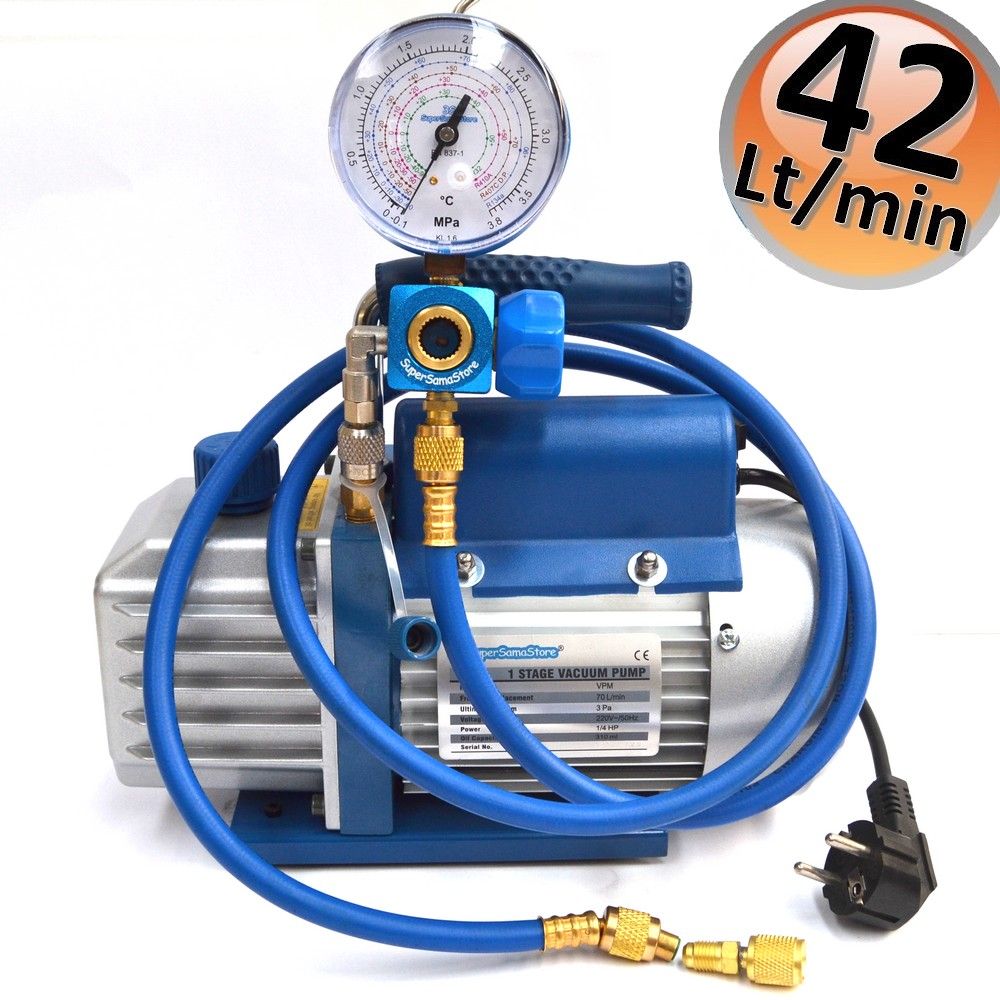

Charging and vacuum kit - 42 Lt/min pump - R32 R410A R407C R134A pressure gauge - hose

KIT for VACUUM and CHARGES

AIR CONDITIONING - PUMP 42 LT/MIN

air conditioning maintenance and installation

INCLUDING:

• SINGLE-STAGE VACUUM PUMP 42 Lt - with OIL
• MANOMETER - VACUUM GAUGE with SCALES for R410a - R407c - R22 GASES
• 150 cm 1/4 SAE WHIP with PIN PRESSURE
• SAE REDUCTION M 1/4 x 5/16 F with swivel

VACUUM PUMP FEATURES:

• INSTRUCTIONS IN ITALIAN
• SINGLE STAGE MODEL 42 LITERS PER MINUTE
• EQUIPPED WITH ON-OFF SWITCH
• OIL LEVEL INDICATOR
• 1 PACK OF OIL INCLUDED
• POWER CORD WITH SHUKO PLUG
• ERGONOMIC CARRYING HANDLE

TECHNICAL DATA:

• SINGLE-STAGE MODEL
• SUCTION CAPACITY IN LITERS PER MINUTE 42
• MOTOR POWER 1/4 HP
• POWER SUPPLY 220 V - 50Hz
• FINAL VACUUM 3 Pa - 0.03 mbar
• OIL IN THE PUMP 310 ML.
• DIMENSIONS 290X110X240 (mm)
• WEIGHT 6.20 KG
• 1/4' SAE CONNECTION

Kit suitable for vacuum and charging operations on external units for air conditioners operating with R410a - R32 - R407c - R134A gases

The set includes everything needed to create a vacuum in the system and check the vacuum seal, thanks to the pressure gauge-vacuum gauge.

The pressure gauge and the hose connected to a gas cylinder (not included) will also allow you to recharge the air conditioner by testing the actual pressure of the system.

ATTENTION:

- to connect to R410A gas cylinders it is necessary to purchase an additional 1/4' x 5/16 SAE reduction

- to connect to R32 gas cylinders it is necessary to purchase the adapter tap

Product Code: KT.VC42
