Tecnocontrol BOSTON HD boiler flue gas analyzer

COMBUSTION ANALYZER

Tecnocontrol BOSTON HD

Characteristics:

BOSTON HD, the latest version of the prestigious range of portable combustion analyzers, boasts exciting new features that place it at the top of the market. Suitable for use on any heating system of any size, it features replaceable sensor cartridges, a large, bright display, and a comprehensive options menu that includes a choice of 14 different fuels.
It also functions as a digital pressure gauge and is capable of testing gas system leaks using the KP400 kit. It comes with management software that uses the instrument's 500 memories, has a data logger function with graphical representation of combustion values, and the ability to print attachments F and G, which can also be customized.

Compliant with standards:

IEC EN 50379-1
IEC EN 50379-2
UNI 10389-1
UNI10845,
UNI 7129
UNI 11137-1

Standard Specifications:

Power supply: AC/DC power supply/charger input:100÷240 AC Output:18V
Battery: Li-Ion 7.2V 1200mAh
Charging time: 4 hours
Battery life: 8/10 hours in continuous operation
Storage temperature: -20°C ÷ 55°C %
Operating temperature: -10°C ÷ 50°C %
PC communication: USB / BLUETOOTH (optional)
Degree of protection: IP 40
Dimensions: 240 x 130 x 110 mm
Weight: 1.4 kg

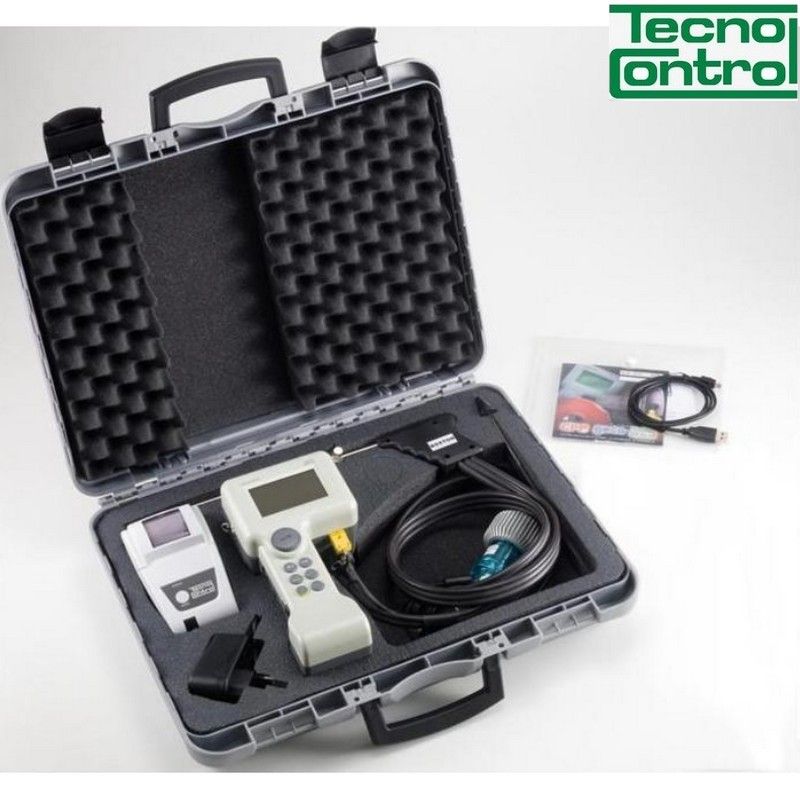

STANDARD EQUIPMENT OF THE INSTRUMENT:

ABS suitcase

Power supply/battery charger

150mm flue gas sampling probe and 1.5m tube

Condensation collector with aluminum radiator

Replacement smoke filter

Combustion air probe

Chimney pressure/depression measurement kit

Shoulder strap

Infrared thermal printer

USB interface cable

Management software (30-day demo version)

User manual

Calibration report

Product Code: BST110+BST337
