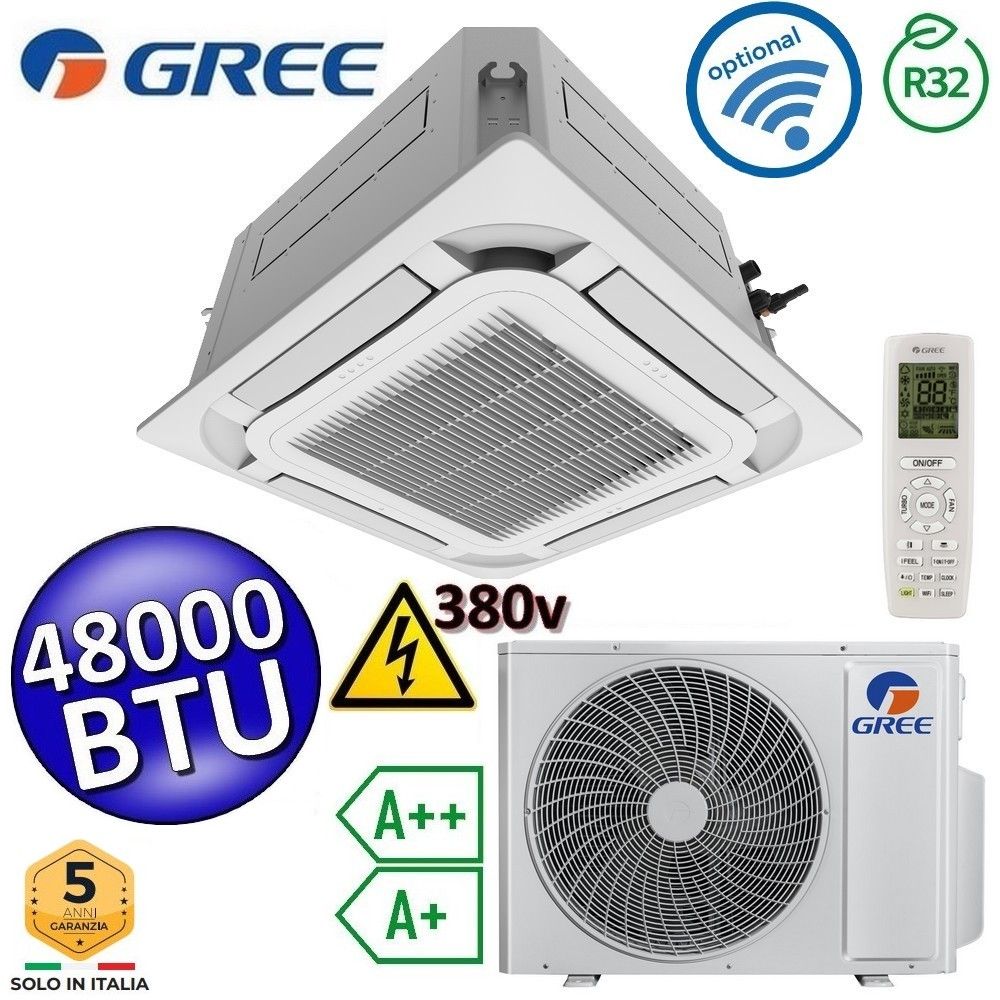

Gree 48000 BTU R32 380V 3-Phase 8-Way Cassette Air Conditioner - Remote Control and Panel Included - U-MATCH 6

GREE - MONO CASSETTE 48000 BTU / 14 kw

COMPLETE with TF06 PANEL and REMOTE CONTROL

THREE-PHASE POWER SUPPLY 380V

Model:
Series: built-in cassette operating with R32 refrigerant gas
Indoor unit model: GUD140T1/AS
Outdoor unit model: GUD140W1/NhA-X
Complete with TF06 cover grille (TL10000220)
Power: 48000 BTU
Infrared remote control included
Integrated condensate drainage pump for height differences up to 1100mm

Performance:
Cooling power output (kW): 13.4 (4.0 - 14.2)
Heating power output (kW): 15.5 (3.90 - 16.0)
EER: 2.85
SCOP: 3.48
Energy class in cold mode: A++
Energy class in heating mode: A+
Power supply: 380-415V / 50Hz / 3 Ph
Power consumption in cold mode: 4.60 kW
Power consumption in heating mode: 4.70 kW
Refrigerant: R32 - 2.80 Kg / T.CO2 eq. 1.89
Air flow UI m³/h: 2000-1800-1600-1400
Fan speed: 4 / modulating
Dehumidification: 3.9 Lt/hr
Sound pressure (dB(A)): max 50 - min 41

Characteristics:
Liquid / gas pipe diameter (inches): 3/8” (9.52mm) - 5/8" (15.88mm)
Internal unit dimensions HxWxD(mm):290/840/840
Indoor unit weight: 36 kg without packaging
External unit dimensions HxWxD(mm): 820/940/370
External unit weight: 99 kg without packaging
Panel/grid dimensions HxWxD(mm): 52/950/950
Panel/grid weight 6 kg without packaging

Cassette Unit Features
Cassettes for single-use applications in the small-commercial/tertiary sectors
Suitable for shops, offices, meeting rooms, hotels, restaurants, clubs, gyms and open-space areas
Compact and attractive design
8-way air flow, 360° flow, with flap oscillation range between 45 and 80°, differentiated according to the hot/cold mode, for maximum comfort
Fan with aerodynamic profiles optimised to ensure maximum silence

GREE by Argo
GREE-branded products are imported and guaranteed in Italy by ARGO, a historic Italian company that has been manufacturing and selling air conditioning products since 1929. GREE-branded air conditioners are designed for the consumer market and offer excellent value for money. Service is guaranteed nationwide by ARGO authorized service centers.

Product Code: KIT-GUD140TW1-X
