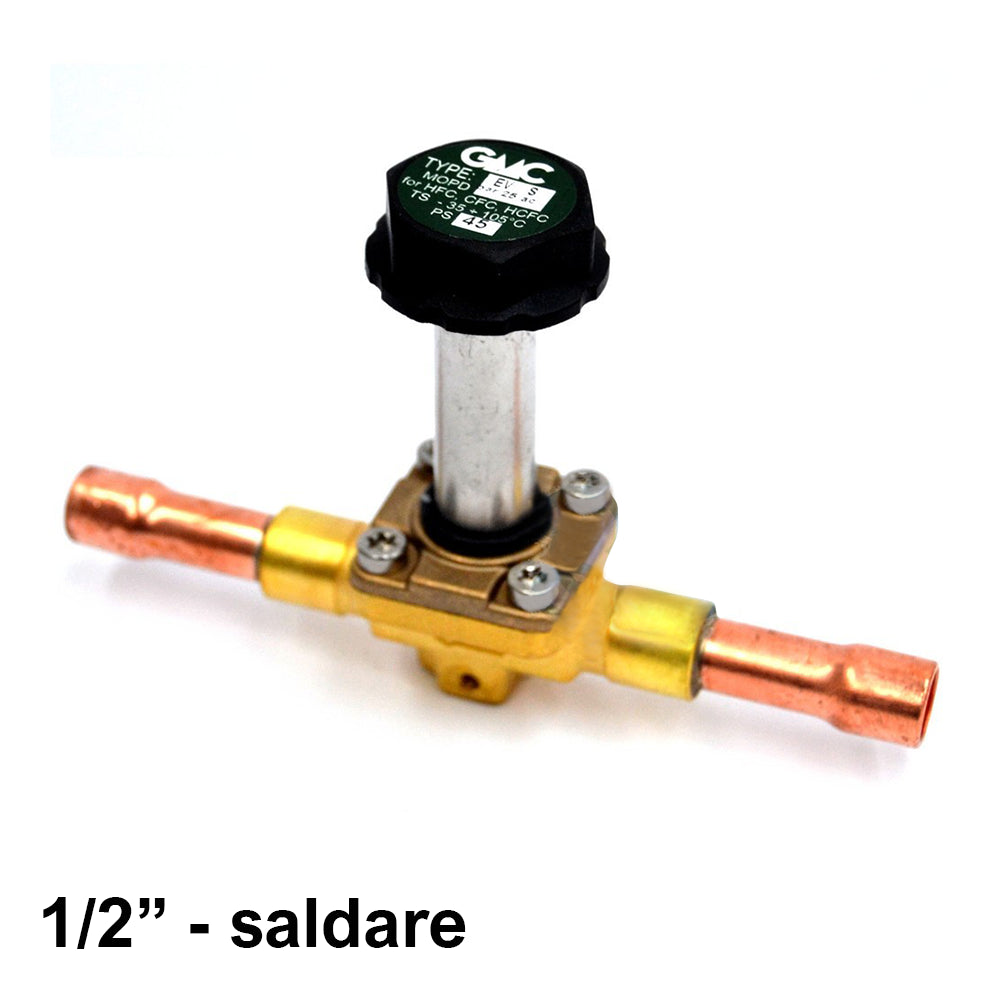

EV104S SOLENOID VALVE - GMC

1/2 SAE x 1/2 SAE welding connection
normally closed

USE: The entire series has been designed for use with fluids classified by Article 13, paragraph 1, letter b, of the PED Directive 2014/68/EU as belonging to Group 2, i.e. non-toxic, non-flammable and non-explosive fluids; this macro Group also includes refrigerants, belonging to Group A1. The entire production range includes normally closed valves, i.e., when the coil is energized the valve opens.

CONSTRUCTION : The body and flange are made of hot-forged brass EN 12420 - CW617N and the seal between these two components is guaranteed by a gasket in a special HNBR compound. The valve sleeve is made of austenitic stainless steel AISI 305 - 1.4303 and houses the fixed and mobile cores made of ferritic stainless steel AISI 430F - 1.4105; the reaction springs inside the group are made of austenitic stainless steel AISI 301. The EPDM sealing rings, placed under and above the coil, ensure perfect insulation from oxidizing agents. The solder connections in the ODS models are made of copper tube EN 12735-1 - Cu-DHP.

Product Code: EV104S
