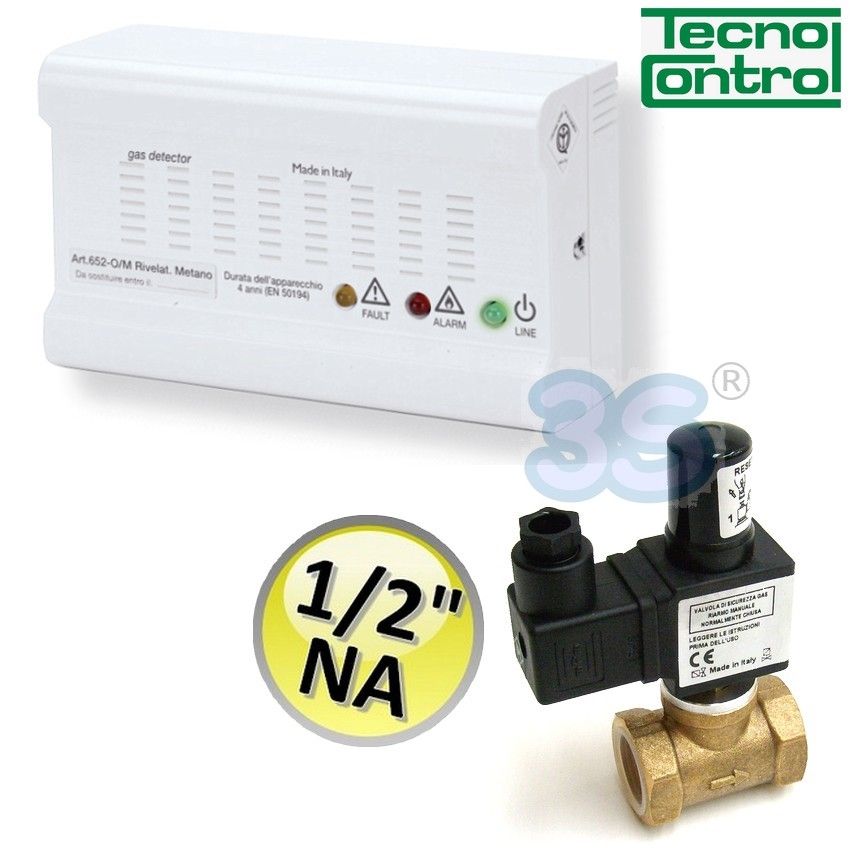

SE230KM Methane Gas Leak Detection Kit + 1/2" NA Solenoid Valve - Tecnocontrol

Features of the SE230KM electronic detector:

The IMQ certification according to the CEI EN 50194 standard guarantees the perfect functionality of these gas detectors.
In the presence of gas concentrations, the alarm light lights up, the buzzer emits a loud sound and thanks to the relay they are equipped with it is possible to control the closing of the gas interception solenoid valve. Certified to standards: EN 50194

Power supply: 230 Vac – 50÷60 Hz and 12Vdc
Power consumption: 4VA at 230Vac
Alarm threshold: 10% of LEL - Measuring range: 0÷20% LEL
Sensor: Catalytic
Output relay: 3A 250Vac changeover
Non-replaceable sensor
Average sensor life 5 years

Solenoid valve features

Power supply: 230 Vac
Body: in yellow painted brass (methane yellow) RAL 1018
Operating temperatures: -15°C / +70°C
Closing time: < 1 sec
Maximum operating pressure: 6 bar
Degree of protection: IP65
Connections: threaded according to ISO 228/1

Product Code: KM001
