GSM activator for electricity utilities via SMS or application

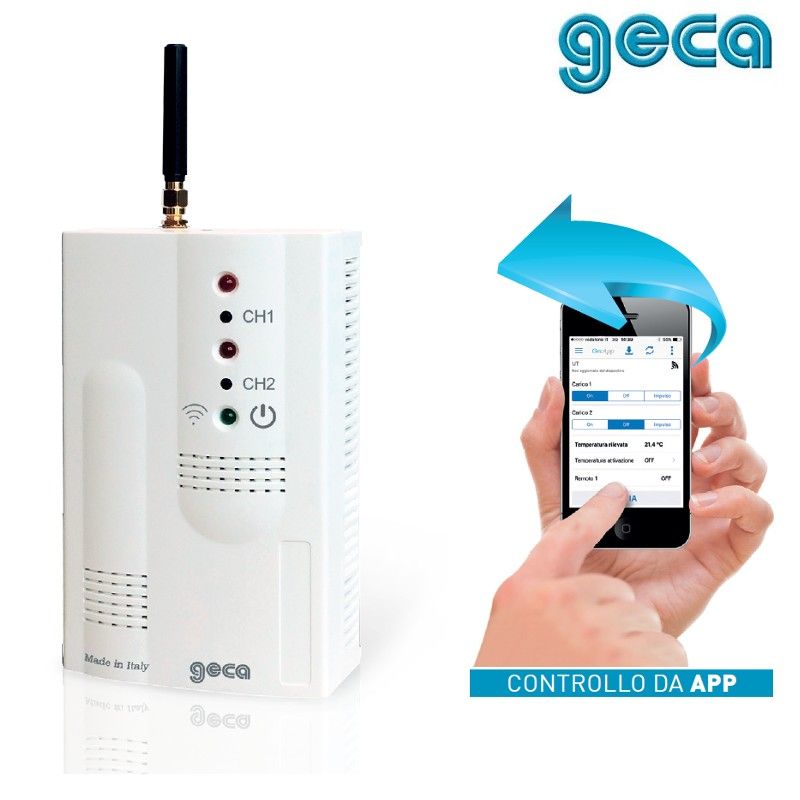

Geca GSM ACTIVATOR

remote control of electrical appliances

via SMS or application from SMARTPHONE or TABLET

GSM ACTIVATOR 03 Geca

GSM controller that allows you to remotely activate or deactivate appliances such as boilers, programmable thermostats, fan coils, air conditioners, alarm systems, gates, etc. via a simple SMS or a free phone call. The GSM 03 activator is equipped with 2 relay outputs and 3 dry contact alarm inputs, which can immediately notify the user of any boiler shutdown, power failure or restoration, alarm system activation (theft, gas, fire), etc.
Thanks to the GSM03 buffer battery, it is able to signal the failure and restoration of the power line.

TECHNICAL DATA

Power supply 12 Vac/dc - I max 500 mA (transformer not included in the package)

Relay outputs 2

Output Power Class 4 (2w @ 850/900 MHz) Class 1 (1w @ 1800/1900 MHz)

Sensitivity 107 dBm @ 850/900/1800/1900 MHz

Rechargeable Li-Ion POLY battery 3.7V-500 mA

User Management Yes (with optional password)

External antenna yes

Monostable relay 8 A - 250 Vac

Command type APP, SMS, ring or manual

Dry contact inputs 3

Temperature control Yes

(internal or external probe)

Programming via APP/SMS

Dimensions 140x85x44 mm

Reference standards EN 301489-7 / EN 301511 / EN 60950

Product Code: GSM03
