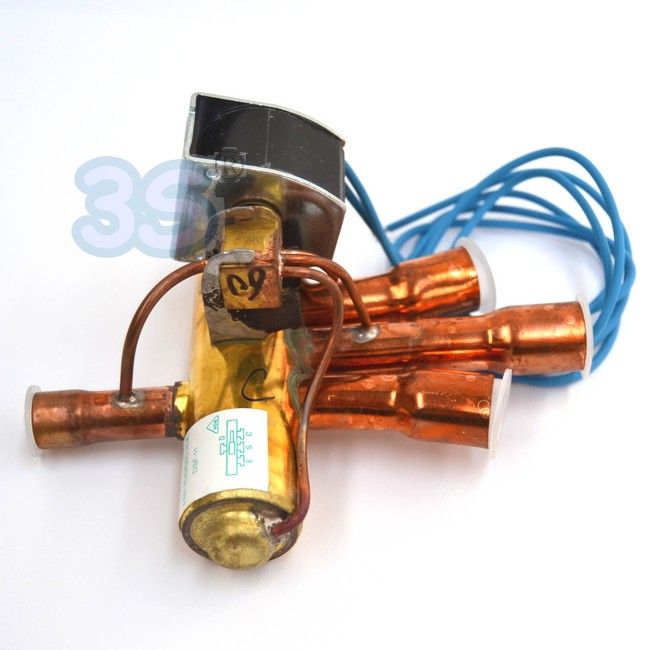

4-way reverse cycle valve for heat pumps - 1/2 / 5/8 - mm 12.8 / 16.2

4-WAY SOLENOID VALVE

refrigerated circuit cycle inversion

connections: 1/2' 5/8' - mm 12.8 - 16.2

CHARACTERISTICS:

Reverses the flow of refrigerant to ensure heating and cooling of the space.

It is used in room air conditioners, centralized air conditioners and monoblocks.

Designed for heat pump systems with variable capacity depending on the refrigerant type.

• The valve is supplied complete with coil
•  Connections: Intake: 5/8” - 16.2 mm // Delivery/exhaust: 1/2” - 12.8 mm
•  For compressors with power between 2.5 - 4 HP
•  Orifice: 11.5mm
•  With R410A gas: Min Kw: 6.45 // Max Kw: 10.35
•  Working pressure: Min: 0.34 bar // Max: 2.25 bar

Product Code: DSF-11
